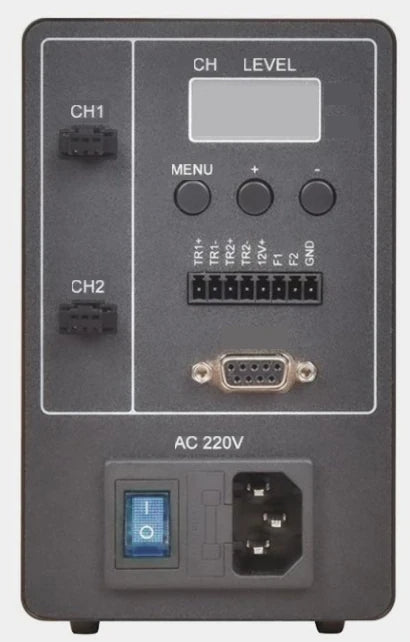

Brightening strobe controller, 2 ch, 120 W (LS-120-MF01C-48200-2)
$569.00
跳至产品信息
Brightening strobe controller, 2 ch, 120 W (LS-120-MF01C-48200-2)
$569.00
Supports RS232 communication. Low trigger response time (10us). Support external/internal triggering modes.
Features
- Supports RS232 communication
- Low trigger response time (10us)
- Support external/internal triggering modes
- Built in 48V switch power supply
- Support synchronous signal output
- Automatic saving of power failure data
- 5~24V trigger, adaptable to high and low level trigger modes
- Small size, easy to install, screw mounting or C45 rail mounting
Specifications
| Model | LS-120-MF01C-48200-2 |
|---|---|
| Maximum output current of a single channel | Instantaneous 20A |
| Maximum input voltage | AC220V |
| Maximum output voltage | 48V |
| Overheat protection | 65W none, all others have |
| Working mode | 0: Internal trigger; 1: External trigger |
| Short-circuit protection | no |
| Brightness level | no |
| Millisecond strobe time | no |
| Microsecond strobe time | 10~999us |
| Communication baud rate | 9600-115200bps optional |
| Trigger mode | edge |
| Operating temperature | -5~50°C |
| Luminous mode | Flicker |
| Driving mode | 48V constant voltage |
| Dimension | 90×94.6×150mm |
| Built-in power supply power | 120W |
| Number of channels | 2 |
| Connected light source type | 10mA~2.5A 24V power supply |
| Total output (W) | 120 |
| Control | digital (buttons, 4-digit display) / RS232 |
