Precision machining and gauging Diameter-edge visibility

Metal-column edges: trade brightness for a cleaner silhouette boundary

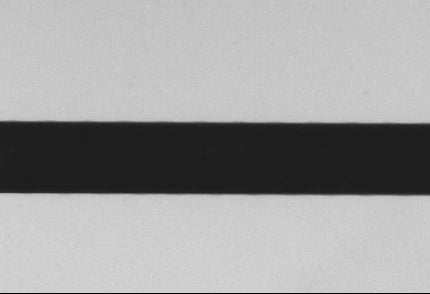

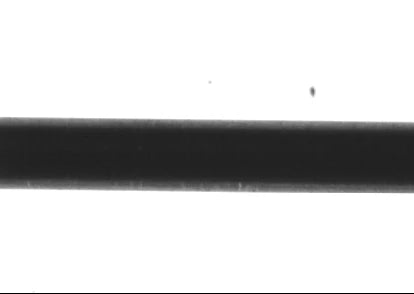

The real side-by-side source image shows a softer boundary under an ordinary backlight and a sharper-looking edge under a collimated panel. The collimated background is dimmer; more brightness is not automatically a better gauging image.

Choose the backlight for edge stability rather than brightness alone.

此设置中的零件 构建此系统

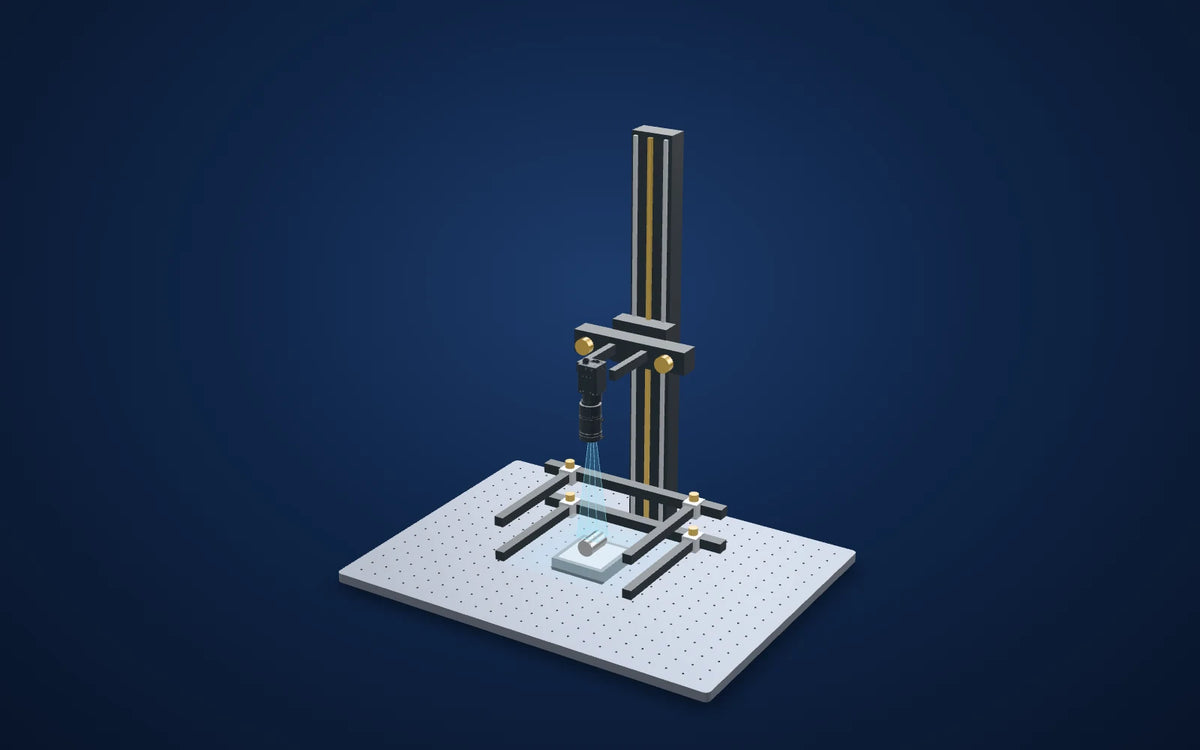

3D illustration of the inspection setup: Metal-column edges under two backlightsOriginal collimated-panel side: dimmer background and a more distinct outline boundary.Real camera capture
3D 的布置示意图 · 在 3D 中探索
  • 建议光源外壳 (规格)84 × 84 × 19 mm
  • 证据实际应用实验室采集
  • 相机 (建议)2448 × 2048 单色
  • 视野 (衍生方案)33.78 × 28.26 mm，由标注的 0.25x 放大倍率得出

挑战

A thick round part can collect stray light around its edge. That apparent border can shift the edge selected by a measurement algorithm.

解决方案

The source compares white LS-4FT7070 with white LS-4PFT7070 on a metal-column diameter application. The latter is the proposed light.

The source gives no camera, image scale or measurement method. The camera, macro lens and station below are a new bench proposal, with a local outline region rather than a guaranteed diameter tolerance.

工作原理

  1. 1

    A more directional transmitted field can reduce light wrapping around the boundary of a thick part.

  2. 2

    The source reports less virtual border but supplies no numerical accuracy. A sharper-looking edge must still be calibrated and tested across real height, focus and part variation.

照明应用-实验室图像表

可检测的证据

图像中可见

The collimated-light side shows a more distinct boundary while its background is dimmer.

光源报告

The source describes reduced virtual border in a column-diameter application, without measured uncertainty or a numerical accuracy result.

如何使用此证据

应用实验室照明演示，不是客户部署或合格的生产检验。建议的相机、镜头、夹具和场景间距需要重新测试。源观察结果不建立缺陷尺寸限制、准确性保证或生产误报率。

从图像对比度到生产决策

部件验证项

  1. 01

    Define the physical edge

    Set the diameter datum and edge-fitting rule before comparing apparent borders.

  2. 02

    Calibrate and reload

    Use a reference artefact and repeat loading, focus and allowed height variation.

  3. 03

    Compare usable contrast

    Adjust exposure without saturation and quantify edge stability, not background brightness alone.

From the demo to your test bench

Parts in this setup

构建此系统

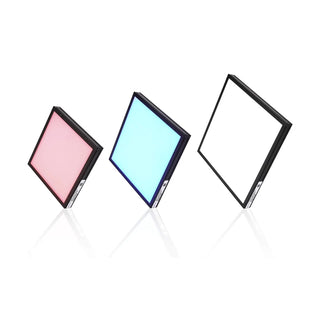

平行背光，84 x 84 x 19 mm（LS-4PFT7070） 光源已测试 LS-4PFT7070 平行背光，84 x 84 x 19 mm（LS-4PFT7070） Exact white source collimated panel;84 × 84 × 19 mm housing and 70 × 70 mm emitting area. $99.00 在建议设置中 背光源，84 x 84 x 17 mm (LS-4FT7070) 光源已测试 LS-4FT7070 背光源，84 x 84 x 17 mm (LS-4FT7070) Ordinary white backlight named in the source comparison; excluded from the proposed kit. $99.00 独立测试 / 备选 Hikrobot MV-CS050-10GM(NPOE) 5 MP GigE 面阵相机, IMX264, Gen 2 基础版本, 单色, 无 PoE 相机推荐选择 MV-CS050-10GM(NPOE) Hikrobot MV-CS050-10GM(NPOE) 5 MP GigE 面阵相机, IMX264, Gen 2 基础版本, 单色, 无 PoE 建议使用 5 MP 黑白全局快门相机，2448 × 2048 像素，像素尺寸 3.45 µm，C-mount。源相机未标明。此 NPOE 型号需要独立供电，且不支持 PoE。 $819.00 在建议设置中 35mm, F2.8, 1.1", C-mount, 微距镜头 (59 mm (-0.7X) 至 150 mm (-0.25X)) (LS-KF3528M-ML) 镜头推荐选择 LS-KF3528M-ML 35mm, F2.8, 1.1", C-mount, 微距镜头 (59 mm (-0.7X) 至 150 mm (-0.25X)) (LS-KF3528M-ML) 35 mm C-mount 微距镜头。其标注的 0.25x / 150 mm 工作距离组合在建议的相机上可得出 33.78 × 28.26 mm 的视场。请确认焦距、覆盖范围及实际工件平面。 $339.00 在建议设置中 带XZ调节和玻璃托盘的相机支架，高度600 mm（LS-BT-XZ-G-6-6045） 相机测试站推荐选择 LS-BT-XZ-G-6-6045 带XZ调节和玻璃托盘的相机支架，高度600 mm（LS-BT-XZ-G-6-6045） 600 mm 立柱，600 × 450 mm 光学面包板，玻璃托盘和两个光源支架。建议的台式夹具；实际负载、行程、夹具、安装紧固件和光源间隙必须予以确认。 $359.00 在建议设置中

"测试"标识源中指定的部件。"我们的选择"是建议的替代品或配套部件。下单前请确认颜色、光学元件、控制器、电源、电缆和安装方式。

The set-up

源相机源表单中未识别
相机与镜头建议的目录组件
建议视场33.78 × 28.26 mm，由标注的 0.25x 放大倍率得出
建议场景中镜头到部件的距离150 mm；打印的工作距离组合
安装（建议）LS-BT-XZ-G-6-6045 · 带有两个光源支架的目录测试站
Coverage of proposed fieldLocal silhouette-edge window; whole-column dimensions and coverage are not asserted

精准安装光学元件

该工作站为光学测试台，其两个光源支架包含在目录列表中。3D 支柱和底座遵循公布的高度和占用空间。滑块、夹具和零件支撑件为示意图：下单前请确认相机螺钉孔位、镜头支撑、光源紧固件、允许负载和实际行程。

完善电气系统

根据精确的光源电压、驱动模式和功率选择控制器，然后确认相机数据/电源/I/O 电缆以及合适的 PC。这些配件不会被自动添加到建议的光学套件中。

Build this system

Start from this setup, adapt it to your part.

The configurator opens with this study's camera, lens, light and station picked. Swap any part, check fit and price, then buy or ask for a quote.

构建此系统 对建议配置进行报价 探索 3D 设置

Camera and available lens CAD are published models. Light envelopes and the station base/height use printed dimensions. Part shapes, brackets, holders, shielding and spacing are illustrative; they are not reconstructions of a source part or a complete mechanically validated assembly. Light paths explain the proposed arrangement and do not simulate optical performance. The proposed field is derived from the printed camera pixel dimensions and the stated lens magnification/working-distance pair, not measured from the source capture. The camera shows a local silhouette-edge window, not the complete cylinder. The source does not supply the actual part dimensions.
