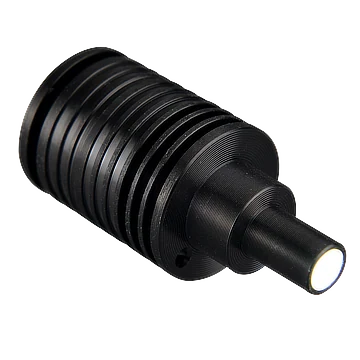

Spot Light, 24 mm dia., Blue (LS-LDSS-8-3-B)
$209.00
Pular para as informações do produto
Spot Light, 24 mm dia., Blue (LS-LDSS-8-3-B)
$209.00
Spot Light, 24 mm dia., Blue. High-power LEDs for high brightness One-piece aluminum alloy body for efficient heat dissipation
Features
- High-power LEDs for high brightness
- One-piece aluminum alloy body for efficient heat dissipation
- Compatible with mainstream telecentric lenses; custom non-standard sizes available
Specifications
| Model | LS-LDSS-8-3-B |
|---|---|
| Color | Blue |
| Wavelength | 465 nm |
| Connector type | SMR-03V-B |
| Power | 2.8 W |
| Cable length | 500 mm |

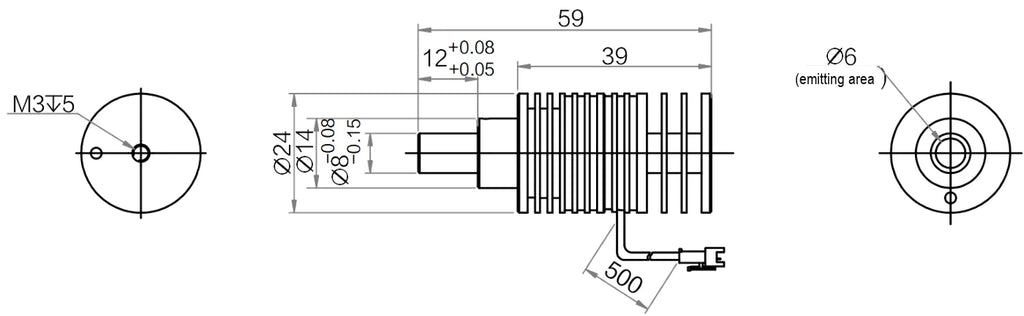

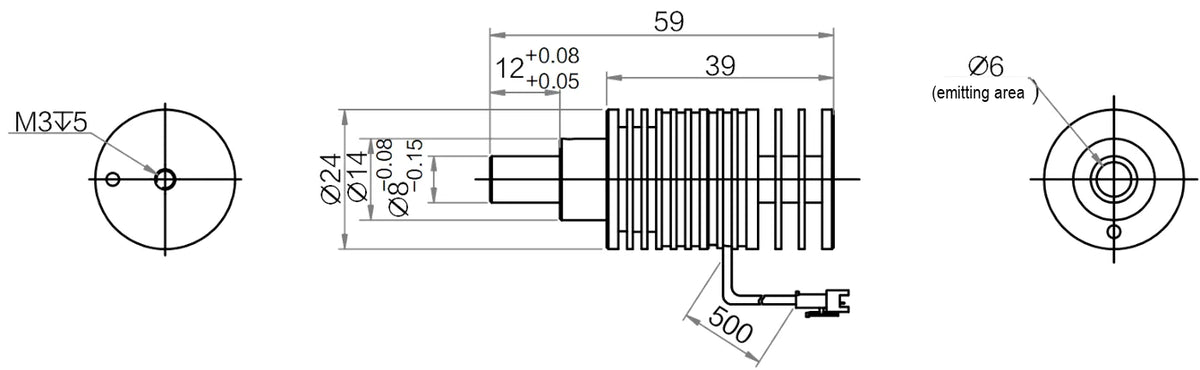

| Dimension | Φ24 mm × 59 mm |
| Outer dimension | Φ24 mm |
| Emitting area outer diameter | Φ6 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
