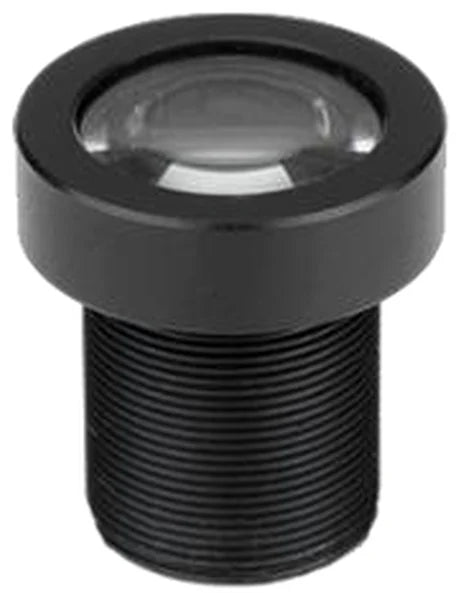

8 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens (LS-SND0828-5M)
$49.00
Skip to product information
8 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens (LS-SND0828-5M)
$49.00
8 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens. 8 mm, 1/1.8" 5 MP M12 (S-mount) lens with <0.3% TV distortion, F2.8; small size. Covers 1/1.8", 1/2" and 1/2.5" cameras for video conferencing, UAV, scanners, sports DV and machine vision. At a glance: focal length 8.0 mm; format 1/1.8"; resolution 5.0 MP; aperture F2.8 Fixed Iris; mount M12.
Features
- High resolution: 5 megapixel covering all 5MP & 1080P
- Large format: 1/1.8" size covering 1/1.8", 1/2", 1/2.5" camera
- Low distortion: <0.3% super low distortion
- B.F.L/M.F.L: 9.36mm / 5.96mm
- C.R.A: <18°
- Illumination: >60%
- Small size: Small size design makes it various application
Applications
- Video conference
- UAV
- Scanner
- Sports DV
- Machine vision
Specifications
| Model | LS-SND0828-5M |
|---|---|
| Resolution | 5.0 MP |
| Max image circle | >dia. 9.2 |
| Format | 1/1.8" |
| Focal length | 8.0 mm |
| Aperture | F2.8 Fixed Iris |
| M.O.D. | 0.1 m |
| Size | dia. 17 x 19 mm |
| TTL | 24.9 mm |
| Distortion | <0.3% |
| Mount | M12 |
| Weight | 8 g |
| Angle of view (1/1.8", DxHxV) | 56.8 x 47 x 35.6 deg |
| B.F.L. / M.F.L. | 9.36 mm / 5.96 mm |
| CRA | <18° |
| Relative illumination | >60% |
| Angle of view (1/1.8") | 57 x 47 x 45.6 deg |
| Angle of view (1/3") | 40 x 32.3 x 25 deg |
| Object size (W.D=400 mm) | 452.4 x 354.2 x 265.6 mm |
| Total track length (TTL) | 24.9 mm |
| Distortion TV | <0.3% ( <0.2% @ 1/3" ) |
| Back focal length | 9.366 mm |
| Shipping weight (estimated) | 0.11 kg |
