Square shadowless light (RIH) (LS-RIH11075)
$379.00
The flexible PCB is fixed with 90 degrees LEDs; high uniformity and high density LEDs provide diffused, soft light; best suited for square shape objects and other different objects. It mainly applied avoid reflation or flare.
Features
- LEDs distributed vertically
- High uniformity, high luminance
- For workpieces that need a balanced surface
- Reduces reflected light and flare
- Customizable: Length and width, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
- LED vertical distribution
- Used to the workpiece which need balanced surface
- Reduce the reflect light or flare
Applications
- Cigarette case surface inspection
- Integrated circuit material strap inspection
- Lead pin pitch inspection
- Integrated circuit character inspection
- Metal surface scratch inspection
- Imaging example: packing contour inspection (LS-RIH15075-W), obvious high-contrast contour
- Inspection lead pin pitch character of integrated circuit
Specifications
| Model | LS-RIH11075 |
|---|---|
| Voltage | 24 V |
| Min. size | 156 mm x 113 mm |
| Max. size | 200 mm x 180 mm |
| Recommended working distance | 10~100 mm |
| FOV | 1~150 mm |
| Colour temperature of white | 6600 K |
| Cable length (drawing) | 500 mm |
| Operating temperature | 0-50 °C |
| Operating humidity | 20-85% (non-condensing) |
| Life-span | 50000 h (to 50% of factory default luminance) |
| Adapted controllers | Strobe controller, analog controller, digital controller |
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
| Note | UV & IR light can be customized as required. |
| Power (R) | 8.2W |
| Power (G/B/W) | 12.5W |
| Weight | 610 g |
| Common model | Y |

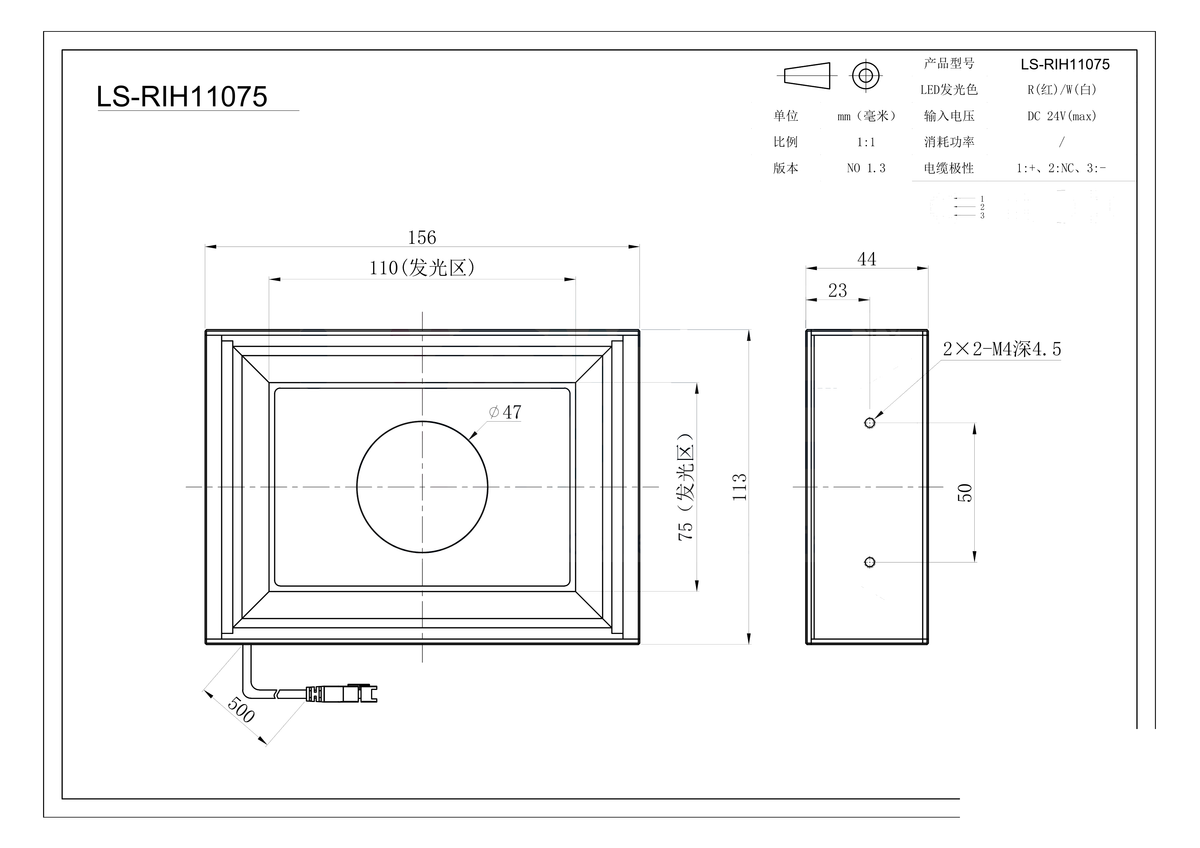

| Dimension drawing no. | 1 |
| Model as printed | LS-RIH11075-R/BGW |
| Dimension | L156xW113xH44(mm) |
| Power | 12.3W/14.1W |
