High power strobe light, 74 x 50 x 50 mm (LS-PF-3COX40)
$489.00
Ga direct naar de productinformatie
High power strobe light, 74 x 50 x 50 mm (LS-PF-3COX40)
$489.00
The brightness of illumination can improve 5-14 times by using the special power controller to achieve a high-power strobe illumination. By microsecond exposure, the maximum brightness can up to 5 million LX, so that the imaging contrast is obvious.
Features
- The brightness of illumination can improve 5-14 times by using the special power controller to achieve a high-power strobe illumination
- By microsecond exposure, the maximum brightness can up to 5 million LX, so that the imaging contrast is obvious
Applications
- High speed and low exposure time inspection
- Semiconductors and electronic component defect inspection
- Metal component defect inspection
- Pharmaceuticals and food package defect inspection
Specifications
| Model | LS-PF-3COX40 |
|---|---|
| Note | UV & IR light can be customized as required. |
| Voltage | 48V |
| Dimension | L74xW50xH50(mm) |
| Current | 16A/16A |
| LED colour | R(red)/W(white) |
| Cable polarity | 1: +, 2: NC, 3: - |
| Mounting holes | 4-M3 depth 4.5 |

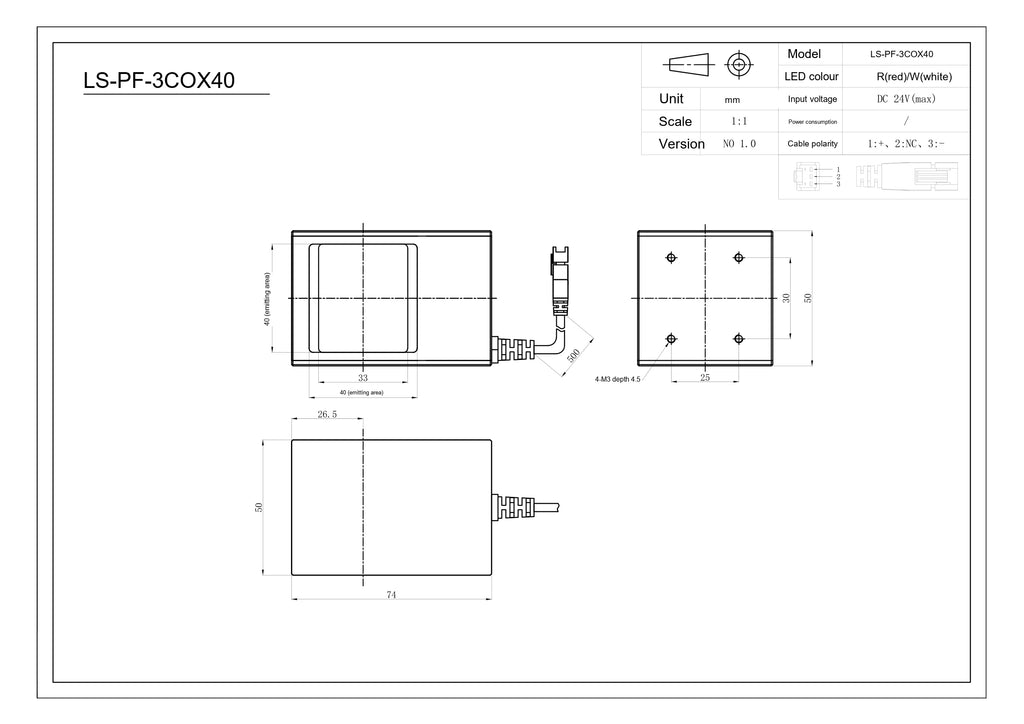

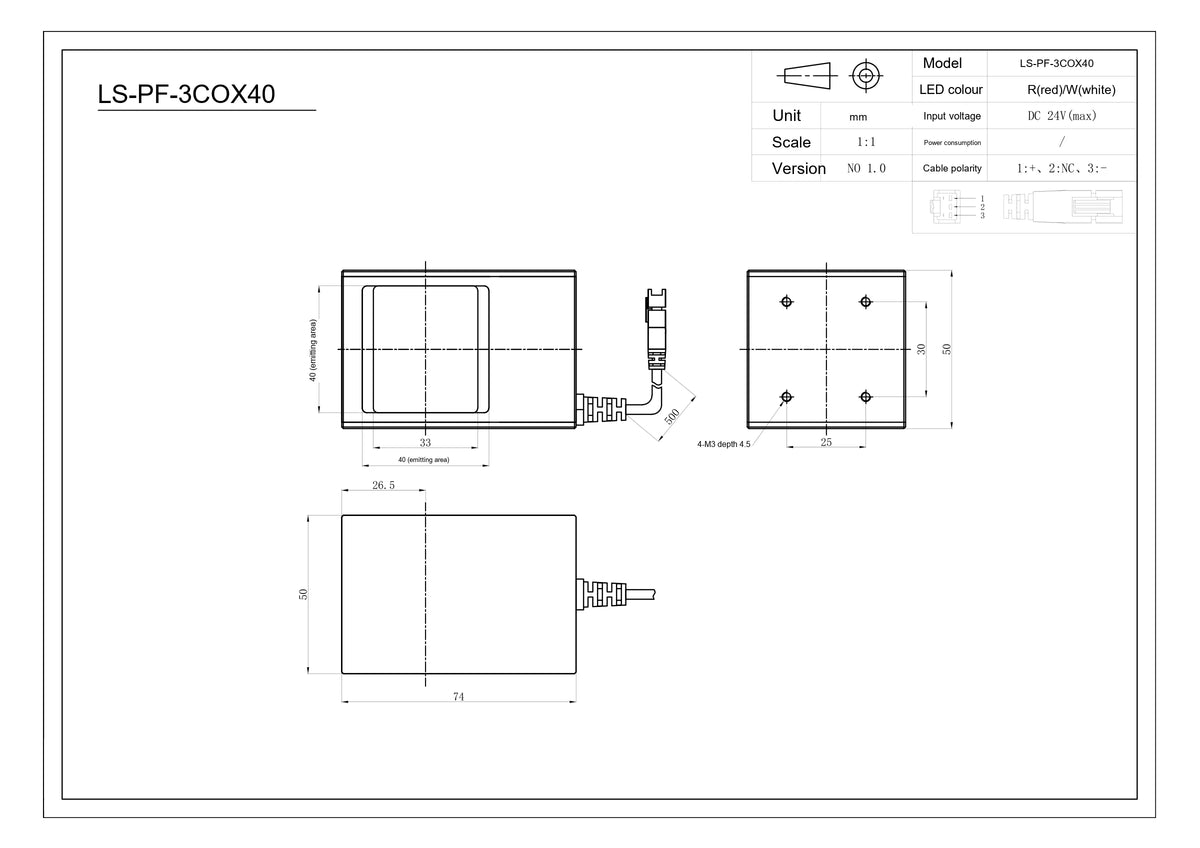

| Cable (mm) | 500 (drawing) |
