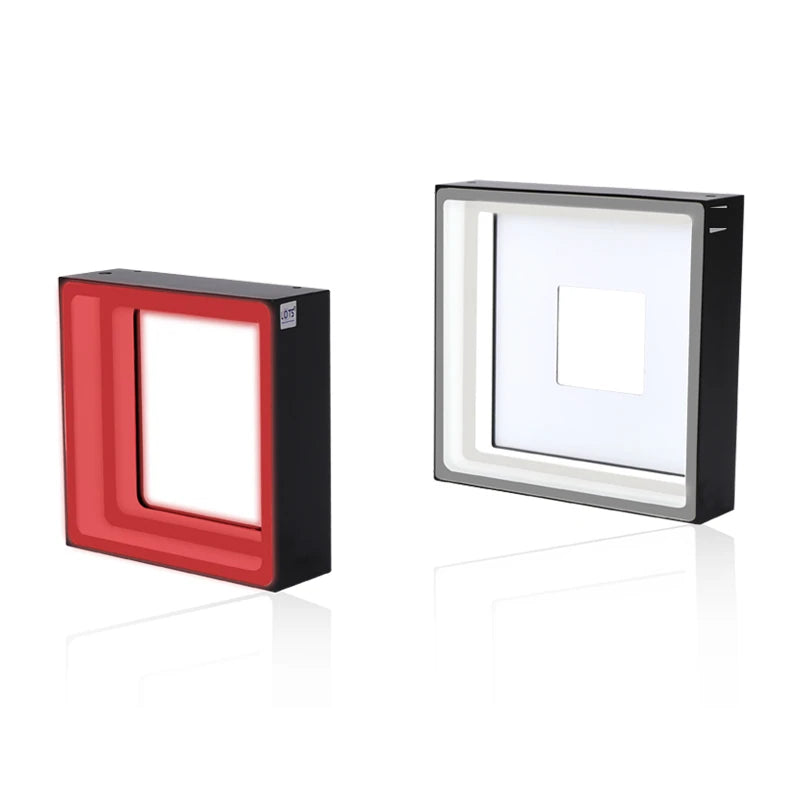

Square shadowless light, 180 x 150 x 30 mm (LS-2FPQ180150)

Unique structure can achieve diffused, even and soft illumination which doesn’t change with the change of altitude. The PCB is fixed with 90 degrees LEDs. Low angle effective illumination can enhance the contrast of features and defects(such as laser printing or etching).

Features

• Uniformly emitting from 4 direction at low angle
• The 2FPQ is 2-3 times brighter than FPQ series
• The installation hole at top and flank make the installation more flexible
• Suitable for quadrangular workpiece (Ex. The outline of four corners)
• Achieve more uniformly emitting by reflector

Applications

• BGA,GFP position inspection
• Integrated circuit material strap inspection
• Inspection lead pin pitch character of integrated circuit
• Metal surface scratch inspection

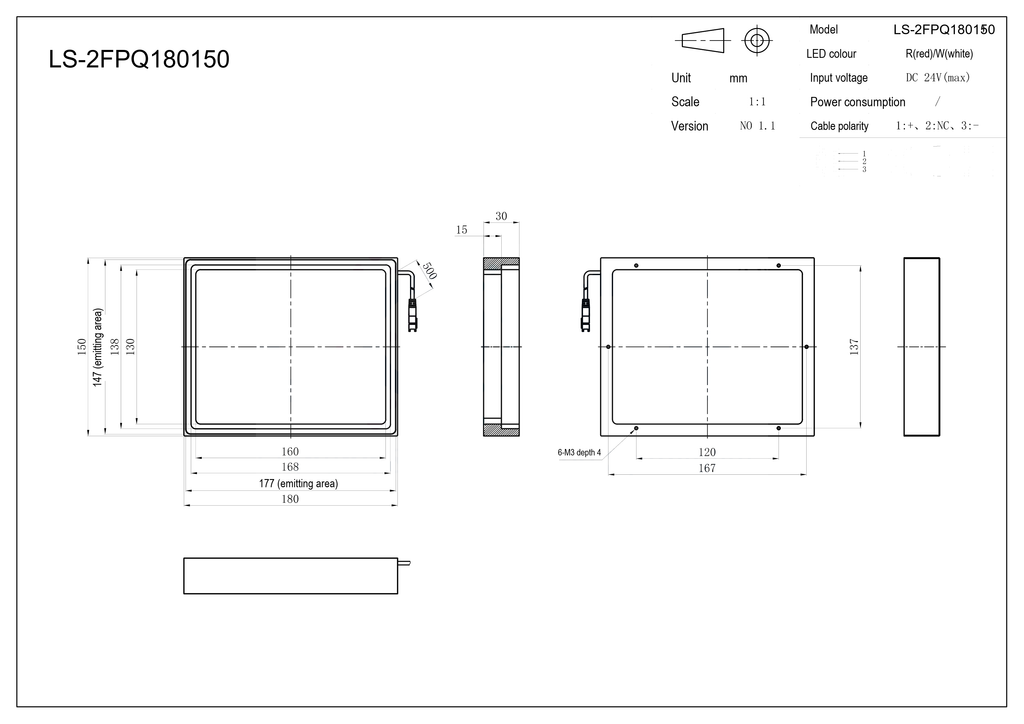

Specifications
