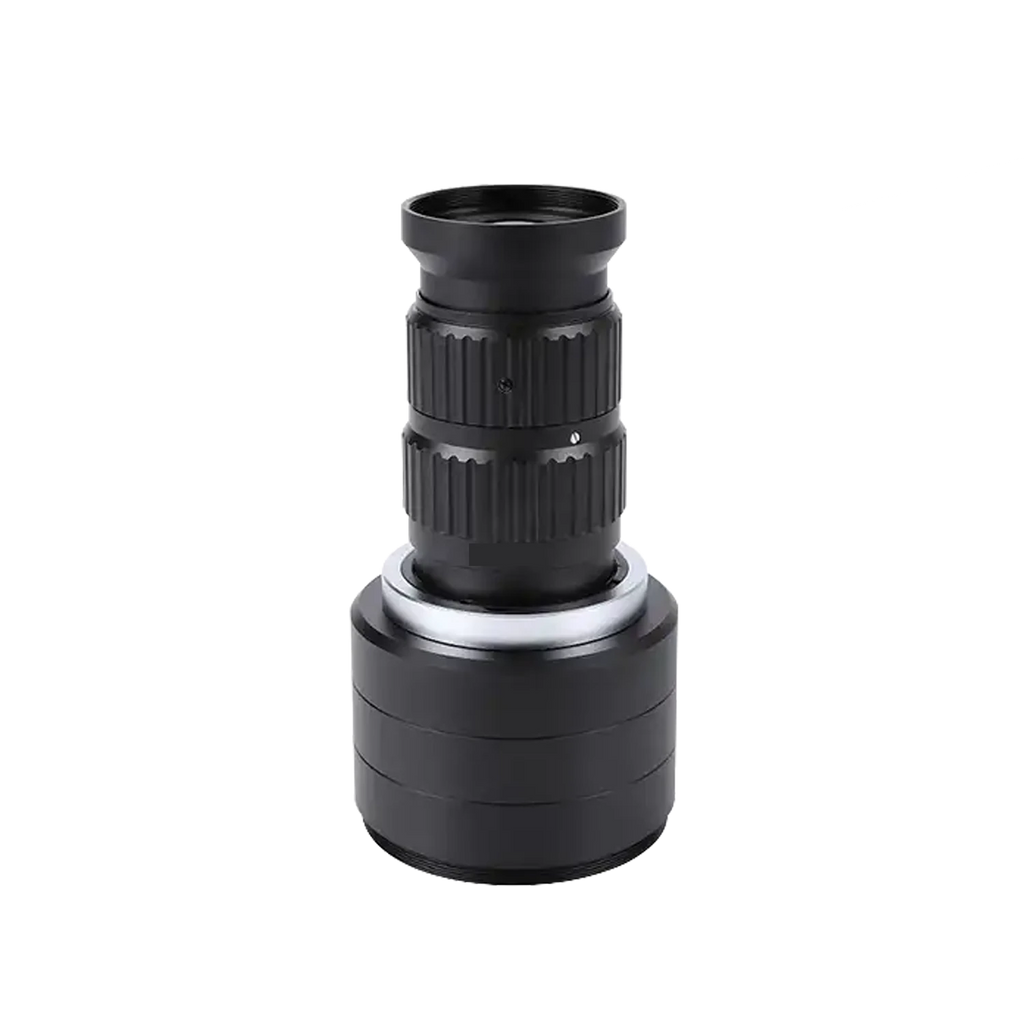

Line scan lens, 80 mm (LS-LS8016K)
$2,249.00
跳至产品信息
Line scan lens, 80 mm (LS-LS8016K)
$2,249.00
Manual focus 4K line scan lens is suitable for professional machine vision imaging,inspection of ultra-long/large size workpieces and other defect detection.
Features
- Focal length 35mm.
- Large image plane:Image circle 28mm.
- High resolution, Low magnification, Excellent imaging effect.
- Anti-shock focusing fastening method.
Specifications
| Model | LS-LS8016K |
|---|---|
| Focal length | 80mm |
| Resolution | 16K5μ |
| F/NO | 4 ~ 16 |
| Image circle | 80mm |
| Magnification | 0.04x~0.33x |
| WD | 303.3-2071.9mm |
| Mount | M42/M58/M72/M90/F |
| Type | Line Scan Lens |
| Working distance | 303.3mm-2071.9mm |
| Temperature range | —20℃~+60℃ |
| Distortion (%) | <0.1 |
| Relative lllumination(%) | >60 |
| Aperture | 4 ~ 16 |
