151.2 mm strip light source, 30 series (LS-L15030)
Red
$119.00
跳至产品信息
151.2 mm strip light source, 30 series (LS-L15030)
$119.00
Strip light with surface-mount LEDs and special optical lenses that concentrate the divergence angle; first choice for large-area lighting with high cost performance. Size can be customized.
Features
- First choice for large-area lighting, high cost performance
- Surface-mount LEDs and special optical lenses, concentrated light divergence angle, high light efficiency, stable mass production
- Size can be customized according to different needs
Applications
- Metal surface inspection
- PCB substrate inspection, electronic component inspection, appearance defect inspection
- Printed material character recognition, mobile phone case positioning, PCB component presence/absence detection
- Infrared screw detection
- Glue outline

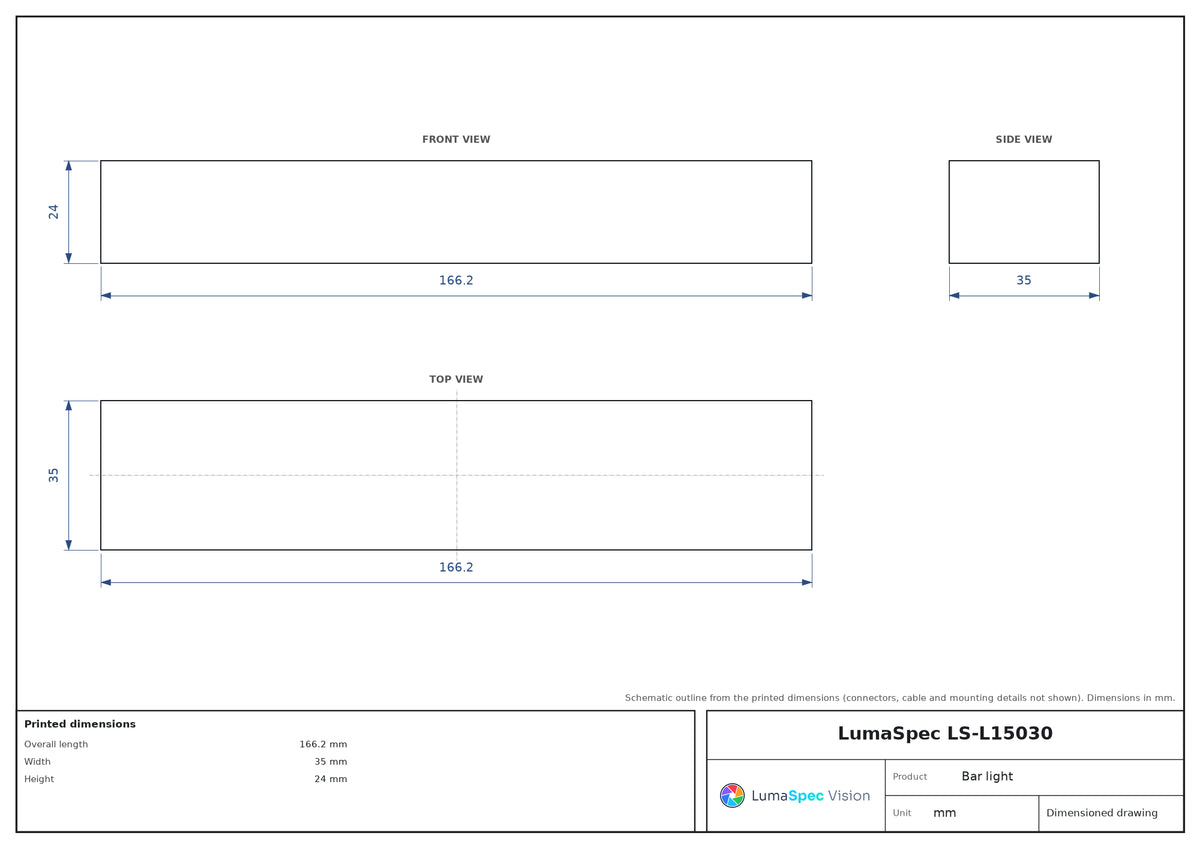

Specifications
| Model | LS-L15030 |
|---|---|
| Voltage | 24 V DC (12 V on request) |
| Number of lamp rows | 6 |
| Width (mm) | 35 |
| Height (mm) | 24 |
| Emitting surface width (mm) | 30 |
| Cable length (mm) | 500 |
| Mounting | 2 x M3, depth 4 |
| Overall length (mm) | 166.2 |
| Overall width (mm) | 35 |
| Power red (W) | 6.5 |
| Power white/blue/green (W) | 7 |
| Emitting surface length (mm) | 151.2 |
| Overall height (mm) | 24 |
