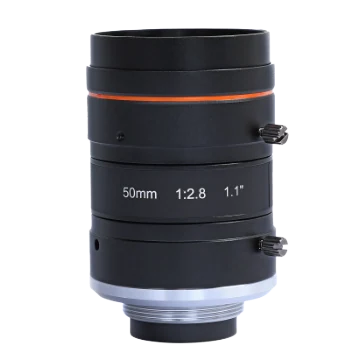

50mm, F2.8, 1.1", 12MP Lens, C-Mount, size Φ38.6×56.8 mm (LS-KF5028M-12MP)
$209.00
跳至产品信息
50mm, F2.8, 1.1", 12MP Lens, C-Mount, size Φ38.6×56.8 mm (LS-KF5028M-12MP)
$209.00
50mm, F2.8, 1.1", 12MP Lens, C-Mount. High resolution with highly uniform sharpness across the image Ultra-low distortion and high relative illumination
Features
- High resolution with highly uniform sharpness across the image
- Ultra-low distortion and high relative illumination
- Maximum sensor format 1.1''
- Supports ultra-short working distances with excellent optics at all object distances
Specifications
| Model | LS-KF5028M-12MP |
|---|---|
| Focal length | 50 mm |
| F-number | F2.8~F16 |
| Image size | Φ17.6 mm(1.1'') |
| Optical distortion | -0.05% |
| Minimum object distance | 0.3 m |
| Field of view | D(17.52mm):18.9°; H(14.14mm):15.1°; V(10.35mm):11.2° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M35.5*0.5 |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |

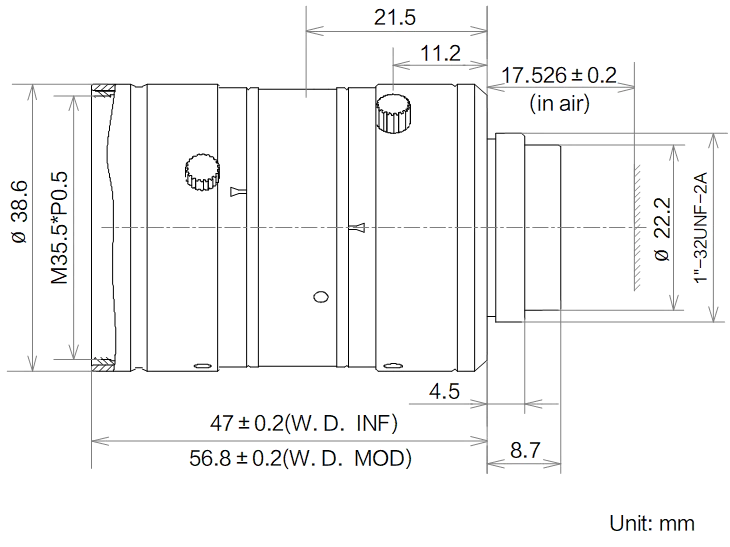

| Dimension | Φ38.6×56.8 mm |
| Weight | 134 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.29 kg |
