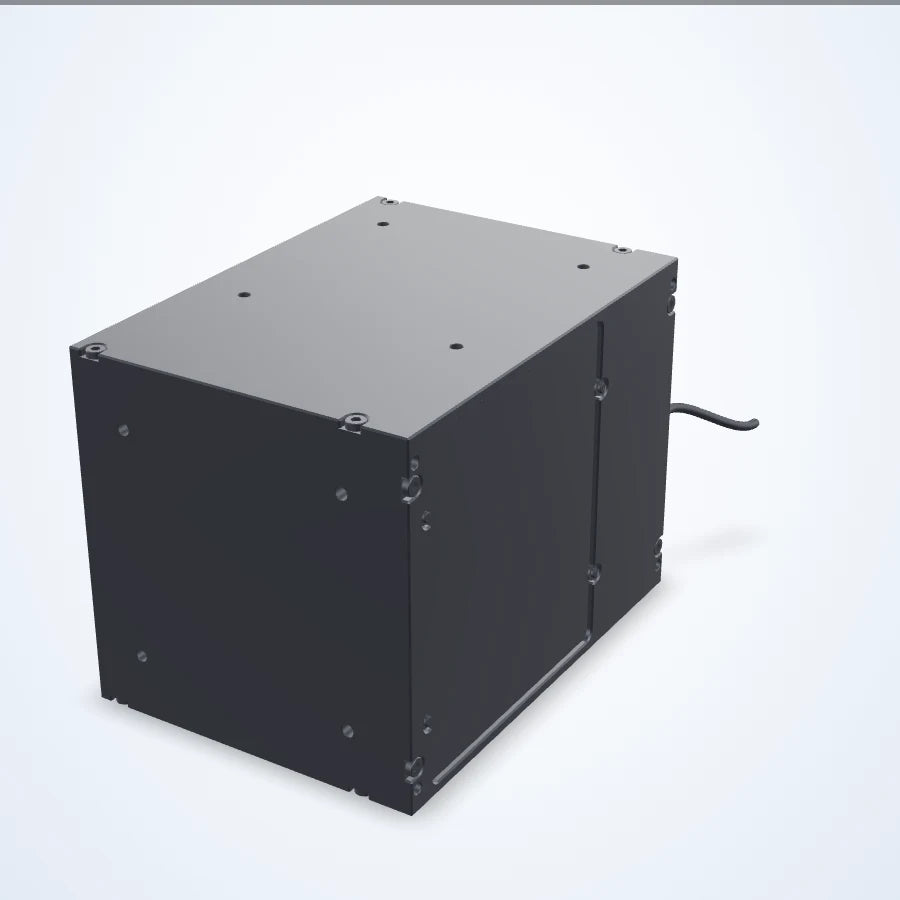

100 x 100 mm Coaxial Light (LS-CON-100)
Red
$289.00
跳至产品信息
100 x 100 mm Coaxial Light (LS-CON-100)
$289.00
100 x 100 mm Coaxial Light. Coaxial light with a special optical beam splitter that gives shadow-free illumination along the camera axis. Higher-brightness versions are available for the same size, with high uniformity and a compact design for flexible installation. Coding: LS-CON-<emitting area>-<colour>, e.g. LS-CON-50-R.
Features
- Special optical beam splitter without shadow
- Higher brightness solutions available for the same size
- High uniformity
- Compact design with flexible installation
Applications
- Scratch detection on metal/glass
- QR code inspection
- Silkscreen alignment
- MARK location
- Chip damage
- Bearing/bottle engraving check
- Circuit board chip inspection
- Surface defect detection of phone camera lenses
- Dirt and character inspection of metal
- Characters inspection
Specifications
| Model | LS-CON-100 |
|---|---|
| Voltage (V) | 24 |
| Power R (W) | 15 |
| Power W/B/G (W) | 22 |
| Emitting area (mm) | 100x100 |

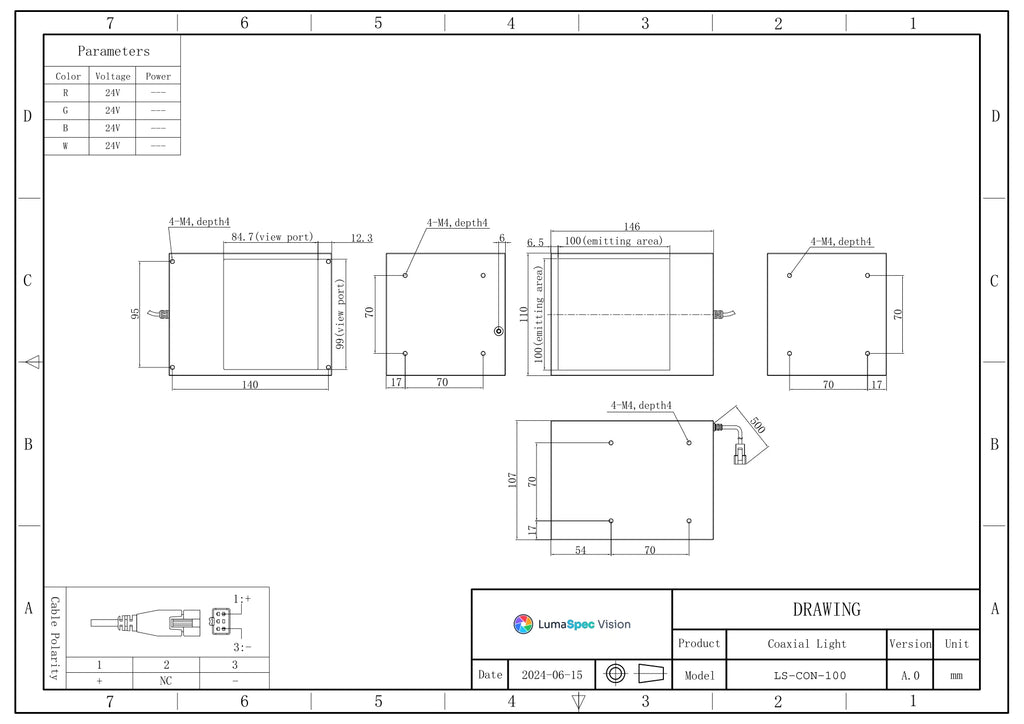

| Outer size L x W x H (mm) | 146x110x107 |
| Colours | Red, Green, Blue, White |
| Illuminance (CON-50, read from curve) | approx. 60,000 lx at 5 mm falling to approx. 20,000 lx at 20 mm working distance |
| Shipping weight (estimated) | 1.05 kg |
