Zoom lens, 10-50 mm, 1/1.8", C-mount (LS-1050C8M)
$329.00
Zoom lens zoom in and out of images by moving a lens inside the lens to change the position of focus, thereby changing the length of focus and the size of the view Angle.
Features
- Image Format: 1/2.3".
- MTF: 3Mega Pixel.
- Focal Length: 8-50mm.
- High contrast and excellent imaging effects.
- Suitable for various industrial inspection, microscopic imaging and visual positioning and other fields.
Specifications
| Model | LS-1050C8M |
|---|---|
| MTF | 8MP |
| Focal length | 10-50mm |
| Image format | 1/1.8" |
| Max.Aperture Ration | F2.0-16 |
| Iris Type | Manual/locked |
| Mount | C |
| Type | Zoom Lens |
| Image Format | 1/108" |
| D/fˊ | F2.0-16 |
| F.O.V (D/H/V) | W39.5°x30.2°/T7.9°x5.9° |
| Back focal length | 17.53mm |
| Optical | Manual/locked |
| M.O.D ( m ) | 0.40m |

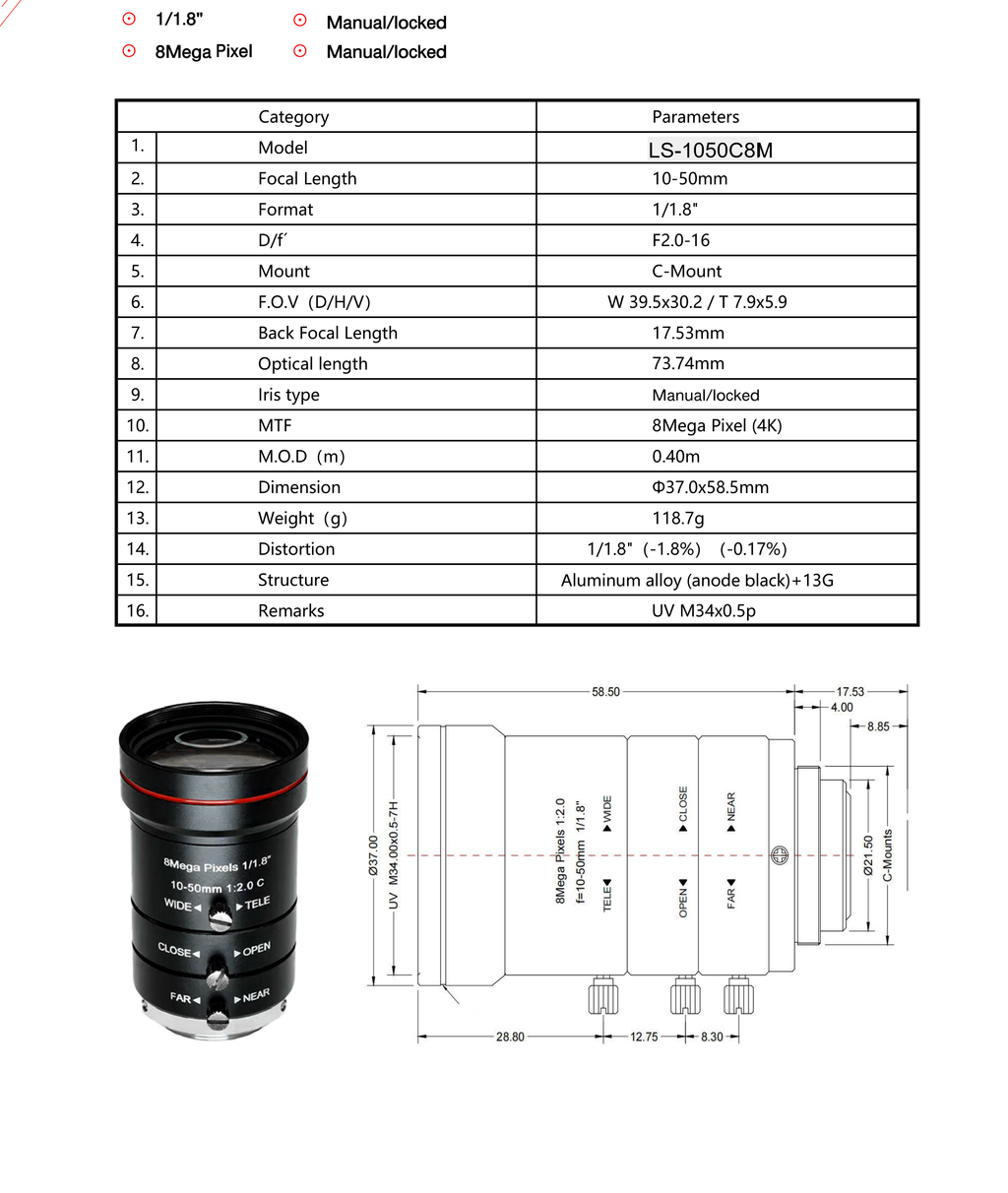

| Dimension | dia. 37*58.5 |
| Weight ( g ) | 118.7g |
| Structure | Aluminum alloy (anode black)+13G |
| Remarks | UVM34x0.5P |
| Sensor format | 1/1.8" |
| Resolution (MP) | 8 |
| Field of view | W39.5°x30.2°/T7.9°x5.9° |
