0.08x, WD 208 mm, 1/2.5", C-mount Telecentric Lens (LS-S125DM90)
$2,099.00
0.08x, WD 208 mm, 1/2.5", C-mount Telecentric Lens. At a glance: magnification 0.08x; working distance 208±3 mm; max sensor size 7.2 mm (1/2.5"); object field of view 90 mm; image-side f/# 4.2.
Specifications
| Model | LS-S125DM90 |
|---|---|
| Object field of view (dia. mm) | 90 |
| Magnification (x) | 0.08 |
| Working distance (mm) | 208±3 |
| Max sensor size (dia. mm) | 7.2(1/2.5") |
| Image-side F/# | 4.2 |
| Image-side MTF30 (lp/mm) | >200 |
| Theoretical depth of field (mm) | ±68.7@F11 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 428±3 |

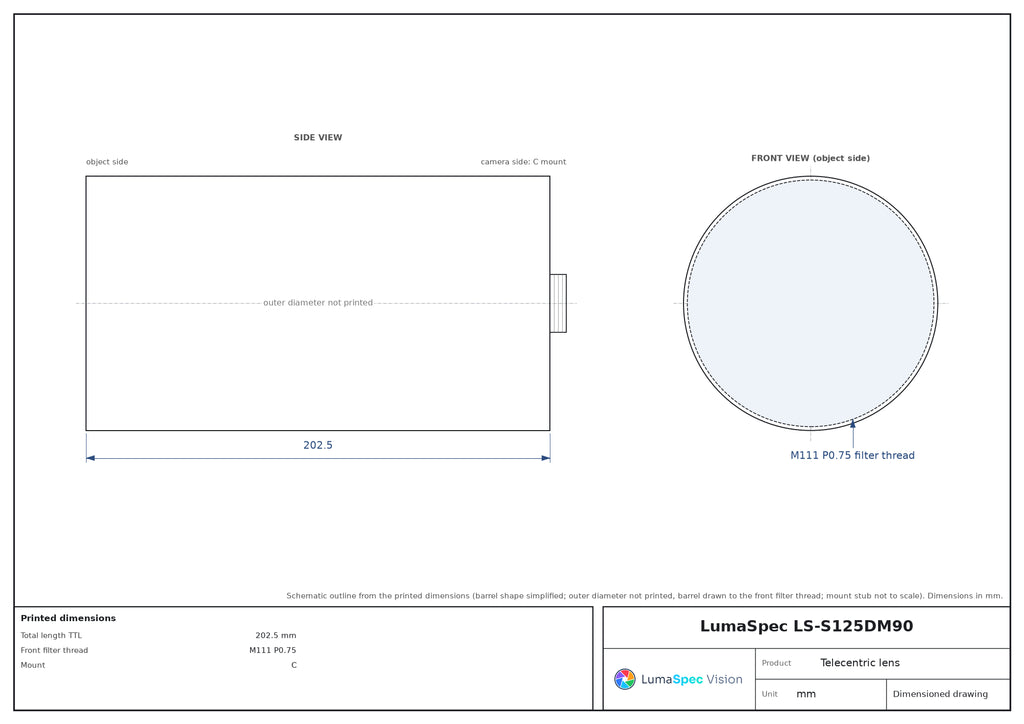

| Total length TTL (mm) | 202.5 |
| Mount | C |
| Net weight (kg) | 1.7 |
| Front filter thread | M111 P0.75 |
| Measured depth of field as shipped (mm) | 25 |
| Shipping weight (estimated) | 2.48 kg |
Photo shows a representative model of this series; see the specifications for this model.
