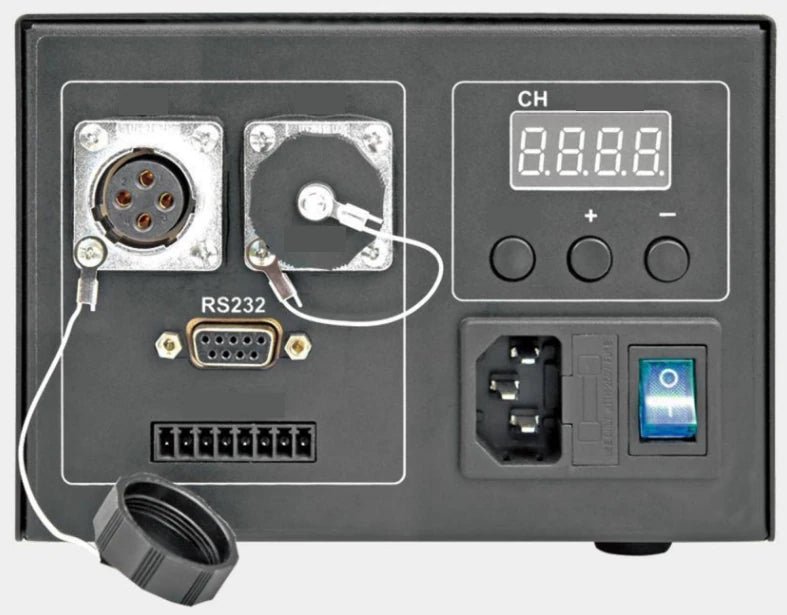

High power controller, 2 ch, 500 W (LS-DV500-N05C-24063-2)
$559.00
Ürün bilgisine atla
High power controller, 2 ch, 500 W (LS-DV500-N05C-24063-2)
$559.00
High power digital voltage-type controllers with built-in high-power 24V switching power supply for high-power light sources, RS232 (and Ethernet on CE version), millisecond and microsecond strobe.
Features
- Supports RS232 communication
- Built-in high power 24V switching power supply
- Can drive high power light sources
- Low trigger response time
- Supports external trigger mode
- Supports millisecond and microsecond strobe
- Brightness and mode can be set manually
- 5~24V trigger, adaptable to high and low level trigger modes
- Easy to install: screw mounting or C45 rail
- Supports RS232 / 100M Ethernet communication
- Built-in high-power 24V switching power supply
- Capable of driving high-power light sources
- Supports external triggering mode
- Parameters saved automatically
Specifications
| Model | LS-DV500-N05C-24063-2 |
|---|---|
| Brightness levels | 255 |
| Driving mode | PWM |
| Luminous mode | Normal light, normal extinction, strobe |
| Max input voltage | AC220V |
| Operating temperature | -5~50°C |
| Overheat protection | Yes |
| Short-circuit protection | No |
| Trigger | 5~24V external trigger, adaptable to high and low level trigger modes; edge + level |
| Trigger mode | Edge + level trigger |
| Built-in power supply power | 500W |
| Number of channels | 2 |
| Connected light source type | 10mA~10A 24V power supply |
| Max output current per channel | 10A |
| Max output voltage | 24V |
| Working mode | 0: normally extinguished, 1: bright, 2: millisecond strobe, 3: microsecond strobe |
| Baud rate | 9600-115200bps optional |
| Built-in power supply | 350W/500W |

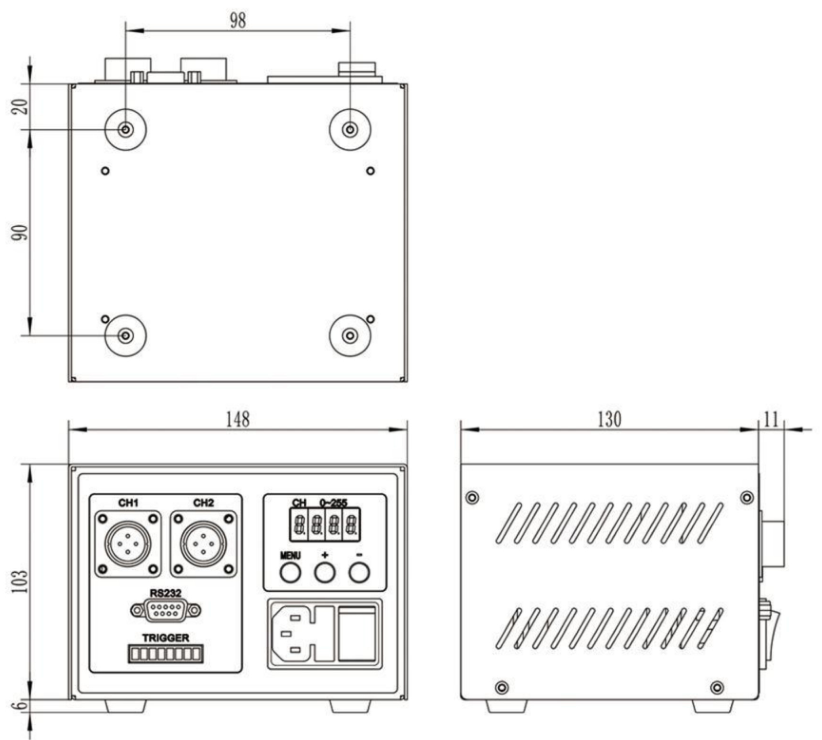

| Dimensions (mm) | 148 x 130 x 109 |
| Control | Digital (4-digit display, buttons), RS232 |
| Total output (W) | 500 |
