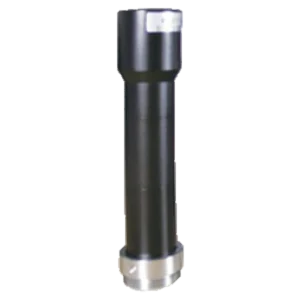

Object-Side Telecentric Lens, 0.5x, 65 mm WD, 2/3" (LS-MY-05-65)
$929.00
Hoppa till produktinformation
Object-Side Telecentric Lens, 0.5x, 65 mm WD, 2/3" (LS-MY-05-65)
$929.00
Object-Side Telecentric Lens, 0.5x, 65 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3”
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 2/3”
Specifications
| Model | LS-MY-05-65 |
|---|---|
| Magnification | 0.5 |
| Working distance | 65±2 mm |
| F-number | F13.1 |
| Image size | Φ11 mm |
| Optical distortion | ≤ 0.1% |
| Depth of field | 4.2 mm |
| Object-side resolution | 17.4 μm |
| Connector type | C-Mount |

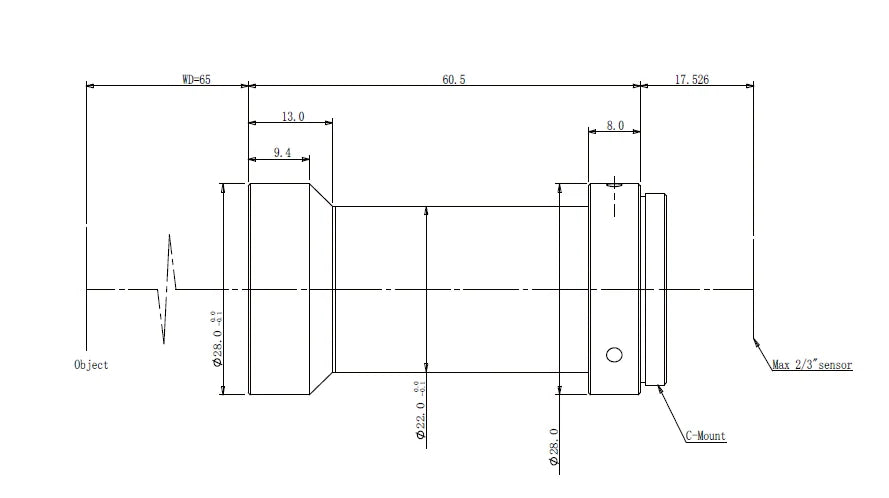

| Dimension | Φ28 mm × 60.5 mm |
| Weight | 150 g |
| Temperature | -10 ~ 50°C |
| Coaxial light | Not supported |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.31 kg |
