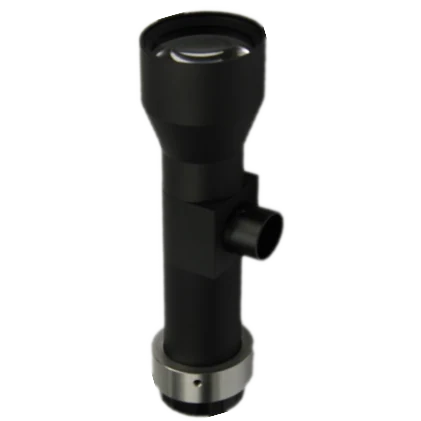

Object-Side Telecentric Lens, 0.45x, 135 mm WD, 2/3", coaxial light port (LS-MY-045-135C-MP)
$1,149.00
Hoppa till produktinformation
Object-Side Telecentric Lens, 0.45x, 135 mm WD, 2/3", coaxial light port (LS-MY-045-135C-MP)
$1,149.00
Object-Side Telecentric Lens, 0.45x, 135 mm WD, 2/3", coaxial light port. Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3”
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 2/3”
Specifications
| Model | LS-MY-045-135C-MP |
|---|---|
| Magnification | 0.45 |
| Working distance | 135±2 mm |
| F-number | F15.8 |
| Image size | Φ11 mm |
| Optical distortion | ≤ 0.1% |
| Depth of field | 6.24 mm |
| Object-side resolution | 23 μm |
| Object-side telecentricity | ≤ 0.1° |
| Connector type | C-Mount |
| Dimension | Φ34 mm × 123.8 mm |
| Weight | 150 g |
| Temperature | -10 ~ 50°C |
| Coaxial light | Supported |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.31 kg |
