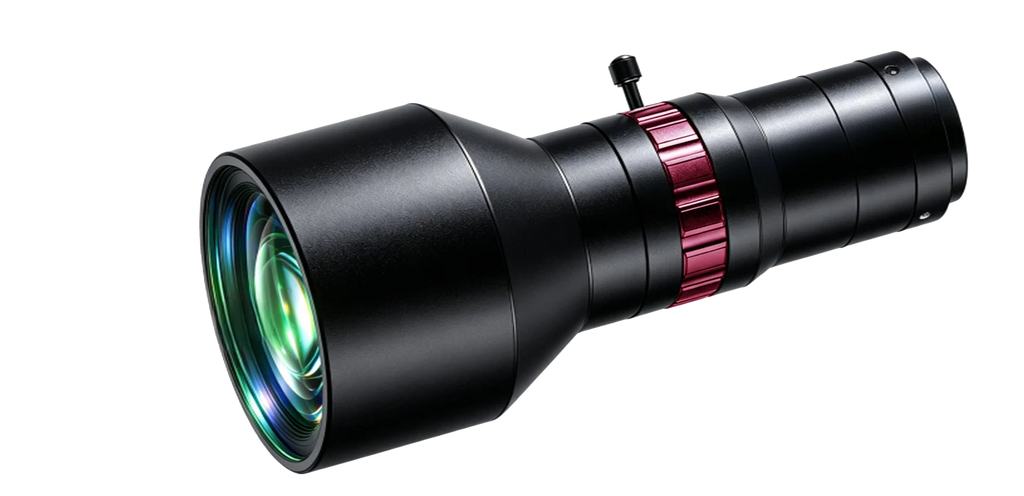

Object-Side Telecentric Lens, 0.3x, 110 mm WD, 2/3", object-side resolution 12.5-71.4 μm (LS-MT-03-110-G)
$969.00
Hoppa till produktinformation
Object-Side Telecentric Lens, 0.3x, 110 mm WD, 2/3", object-side resolution 12.5-71.4 μm (LS-MT-03-110-G)
$969.00
Object-Side Telecentric Lens, 0.3x, 110 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 2/3"
Specifications
| Model | LS-MT-03-110-G |
|---|---|
| Magnification | 0.3 |
| Working distance | 110 mm |
| F-number | F5.6-32 |
| Image size | Φ11 mm |
| Depth of field | 5-28.4 mm |
| Distortion | ≤0.04% |
| Object-side resolution | 12.5-71.4 μm |
| Object-side telecentricity | ≤0.03° |
| Connector type | C-Mount |
| Coaxial light | Not supported |

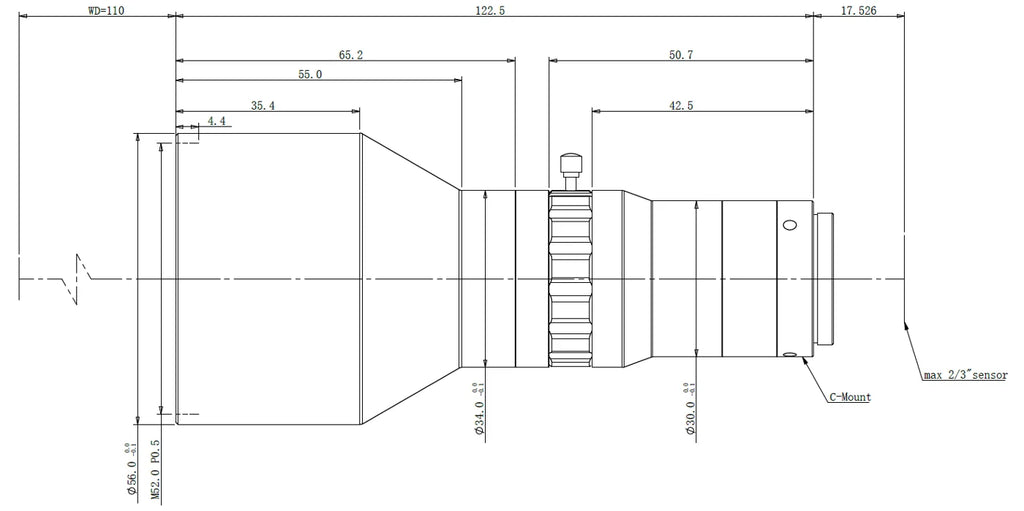

| Dimension | 122.5 mm × Φ56 mm |
| Temperature | -10 ~ 50 °C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
