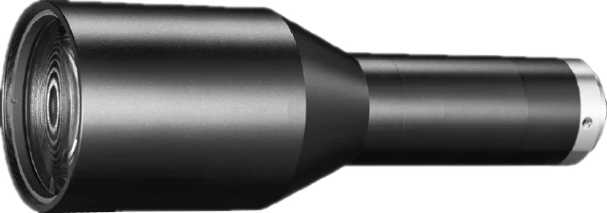

Object-Side Telecentric Lens, 0.3x, 180 mm WD, 2/3" (LS-MT-03-180)
$969.00
Перейти к информации о продукте
Object-Side Telecentric Lens, 0.3x, 180 mm WD, 2/3" (LS-MT-03-180)
$969.00
Object-Side Telecentric Lens, 0.3x, 180 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 2/3"
Specifications
| Model | LS-MT-03-180 |
|---|---|
| Magnification | 0.3 |
| Working distance | 180 mm |
| F-number | F10 |
| Image size | Φ11 mm |
| Depth of field | ±4.4 mm @F10 |
| Distortion | ≤0.1% |
| Object-side resolution | 20.8 μm |
| Object-side telecentricity | ≤0.1° |
| Connector type | C-Mount |
| Coaxial light | Not supported |

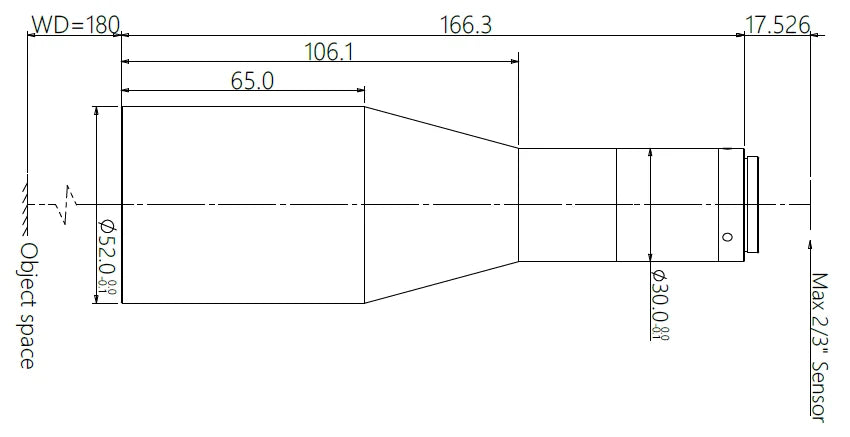

| Dimension | 166.3 mm × Φ52 mm |
| Temperature | -10 ~ 50 °C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
