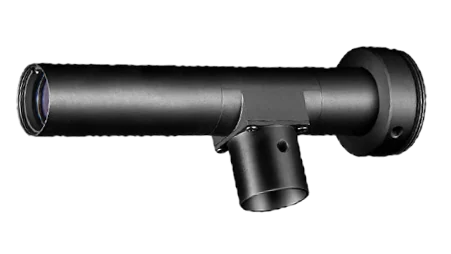

Object-Side Telecentric Lens, 0.8x, 110 mm WD, 1/2", coaxial light port (LS-HY-08-65C)
$789.00
Перейти к информации о продукте
Object-Side Telecentric Lens, 0.8x, 110 mm WD, 1/2", coaxial light port (LS-HY-08-65C)
$789.00
Object-Side Telecentric Lens, 0.8x, 110 mm WD, 1/2", coaxial light port. Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/2"
Features
- Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/2"
Specifications
| Model | LS-HY-08-65C |
|---|---|
| Magnification | 0.8 |
| Working distance | 110 mm |
| F-number | F11.9 |
| Image size | 1/2" |
| Depth of field | 1.5 mm |
| Distortion | ≤ 0.1% |
| Object-side resolution | 10 μm |
| Object-side telecentricity | ≤ 0.01° |
| Connector type | C-Mount |
| Coaxial light | Supported |

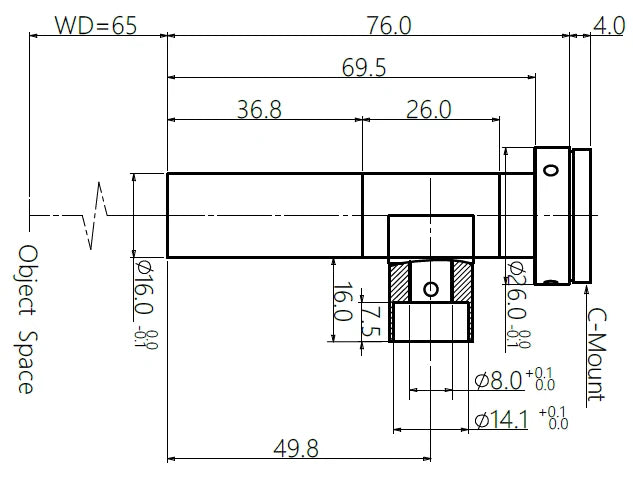

| Dimension | 76 mm × Φ16 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
