High precision coaxial light, 154 x 130 x 132 mm (LS-3COX120-CP)
$529.00
Adopt high precision cube spectrometer to instead of plate spectrometer, high inspection precision. More suitable for tiny object inspection. Compact structure, suitable for limited space environment.
Features
- Adopt high precision cube spectrometer to instead of plate spectrometer, high inspection precision
- More suitable for tiny object inspection
- Compact structure, suitable for limited space environment
Applications
- The damage inspection of the chip, wafer
- The scratch of reflective surface
- Bar code, QR code recognition
- Printing, silk-screen inspection
Specifications
| Model | LS-3COX120-CP |
|---|---|
| Note | UV & IR light can be customized as required. |
| Voltage | 24V |
| Dimension | L154xW130xH132(mm) |
| Power | 34.6W/45.4W |
| LED colour | R(red)/W(white) |
| Input voltage | DC 24V (max) |
| Cable polarity | 1: +, 2: NC, 3: - |
| Viewport (camera hole) | 120 x 96 mm |
| Mounting holes | 4-M3 depth 4.5 |

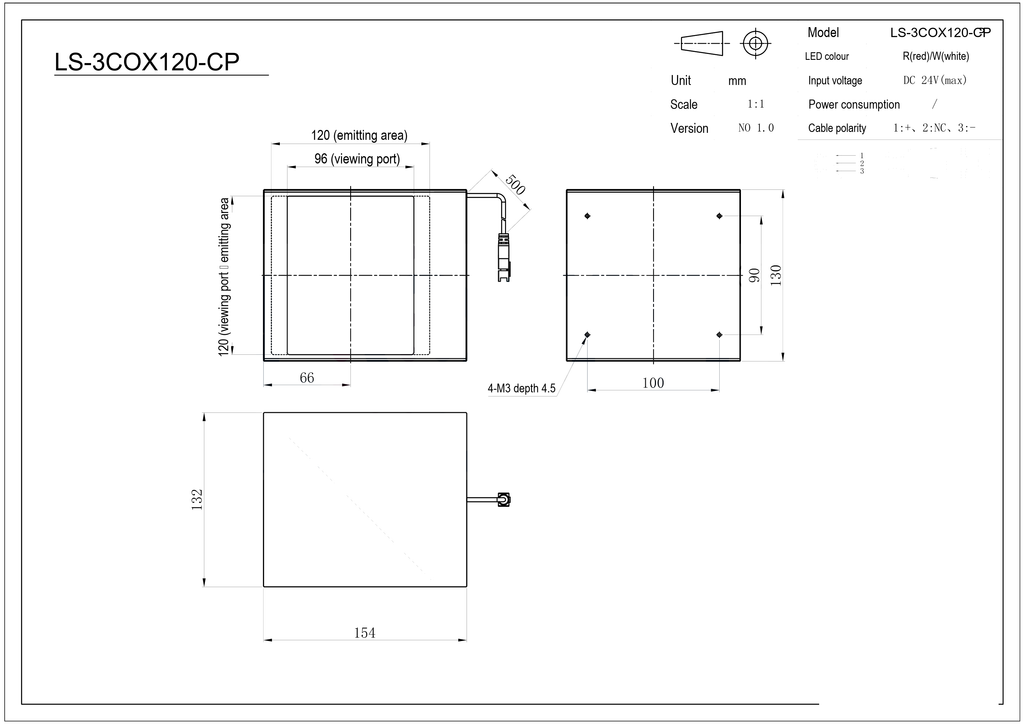

| Cable (mm) | 500 (drawing) |
