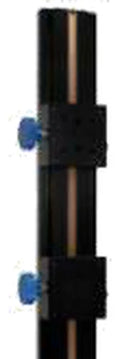

CCD camera bracket with gear-rack YZ adjustment (200-550 mm) (LS-ZJ450)
$159.00
Skip to product information
CCD camera bracket with gear-rack YZ adjustment (200-550 mm) (LS-ZJ450)
$159.00
CCD camera bracket with gear-rack YZ adjustment (200-550 mm). Gear-rack driven CCD camera brackets (Z columns) on 60 x 90, 60 x 150 or 40 x 100 mm bases, 150 to 1000 mm high. At a glance: travel 430; height 450 mm; plate size 60 x 90 mm.
Specifications
| Model | LS-ZJ450 |
|---|---|
| Drive | Gear rack, manual |
| Plate size | 60 x 90 mm |
| Min. scale | 0.1 mm |
| Material | Aluminum alloy, anodized |
| Movement | YZ axes |
| Height | 450 mm |
| Travel | 430 |
| Movement parallelism | <=0.3/60 |
| Weight | 1.9 kg |
| Slide plate | 60 x 60 mm, 2x |
| Bottom base size | 60 x 90 mm |
| Type | CCD camera stand, gear-rack drive |
| Shipping weight (estimated) | 2.76 kg |
