Telecentric lens for AOI inspection, WD 110-220 mm, 0.3x, WD 220 mm, 2/3", C-Mount (LS-VWK03-220-230)
$359.00
Skip to product information
Telecentric lens for AOI inspection, WD 110-220 mm, 0.3x, WD 220 mm, 2/3", C-Mount (LS-VWK03-220-230)
$359.00
Large target area, high resolution object-side telecentric lenses for AOI: large FOV with low magnification and long working distance, supporting up to 1.1" 12M class high-speed cameras.
Features
- Working distance 110 - 220 mm
- C-mount
- Coaxial light versions (C in the model code)
- Large FOV with low magnification
- Long working distance, easy for illumination and object allocation design
- High accuracy, low distortion, high telecentricity, supports up to 1.1" 12M class high-speed cameras
- Optimized for AOI and positioning applications
Applications
- AOI inspection
- Positioning
Specifications
| Model | LS-VWK03-220-230 |
|---|---|
| Mount | C-Mount |
| Mag. (x) | 0.3 |
| WD (mm) | 220±3 |
| Max sensor size (dia. mm) | 11.0(2/3") |
| F/# | 13.6 |
| MTF30 (lp/mm) | >63 |
| DoF (mm) | ±9.7@F22 |
| Distortion (% max) | <0.1 |
| Telecentricity (deg max) | <0.1 |

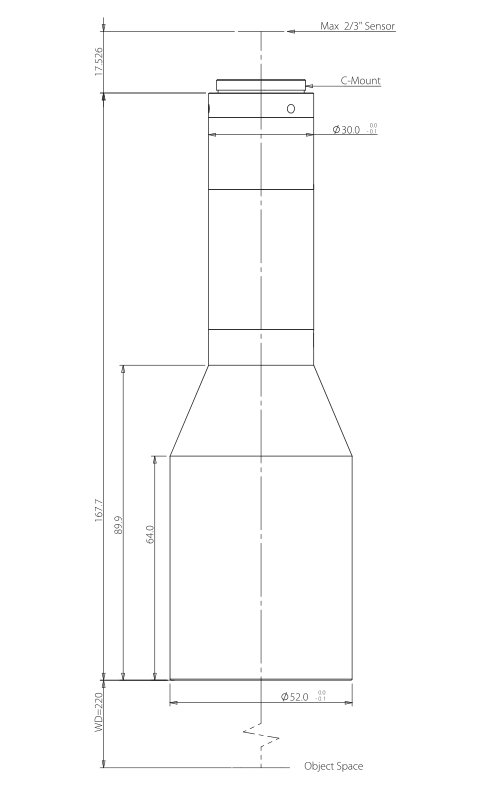

| Length (mm) | 167.7 |
| Coaxial light | NO |
| Field of view on 2/3" ICX625/655(8.47x7.1) (mm) | 28.2 x 23.7 |
| Magnification (x) | 0.3 |
| Working distance (mm) | 220±3 |
| Depth of field (mm) | ±9.7@F22 |
| Telecentricity (° max) | <0.1 |
| Field of view on 2/3" ICX625/655(8.47x7.1) (mm x mm) | 28.2x23.7 |
| Sensor format | 2/3" |
| Aperture | F/13.6 |
