Macro/megapixel telecentric lens, WD 65 mm, 1x, WD 65 mm, 2/3", C-mount (LS-VDH10-65-230)
$259.00
Skip to product information
Macro/megapixel telecentric lens, WD 65 mm, 1x, WD 65 mm, 2/3", C-mount (LS-VDH10-65-230)
$259.00
Full range of object-side telecentric fixed-magnification lenses with multiple working distances, magnifications and CCD sizes to select. High contrast, low distortion and high resolution in a compact design, with coaxial illumination options.
Features
- Full range of object-side telecentric fixed magnification lenses
- Multiple working distances / magnifications / sensor sizes for selection
- Supports all kinds of megapixel cameras
- High contrast, low distortion, high resolution
- Compact design with coaxial illumination options
- Full range of object side telecentric fixed magnification lenses, with multiple working distances / magnifications / CCD sizes for selection
- Perfect image and supports all kinds of megapixel cameras
- High contrast, low distortion, high resolution, compact design with coaxial illumination options
Applications
- High-precision visual positioning
- High-precision visual positioning and similar applications
Specifications
| Model | LS-VDH10-65-230 |
|---|---|
| WD (mm) | 65 |
| Max sensor size (mm) | 11.0(2/3") |
| Mount | C-mount |
| Working distance (mm) | 65 |
| Max sensor size (dia. mm) | 11.0(2/3") |
| Mag. (x) | 1 |
| WFNO | 11 |
| Distortion (% max) | <0.05 |
| Resolution (um) | 5 |
| DoF (mm) | 1 |

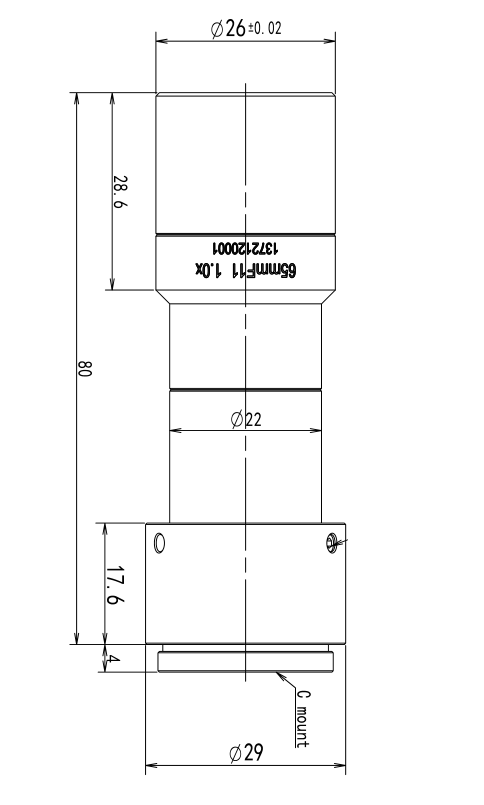

| Length (mm) | 80.00 |
| Coaxial light | No |
| Field of view on 1/2" (6.4x4.8) (mm) | 6.4 x 4.8 |
| Field of view on 1/1.8" (7.13x5.37) (mm) | 7.1 x 5.3 |
| Field of view on 2/3" (8.8x6.6) (mm) | 8.8 x 6.6 |
| Magnification (x) | 1 |
| WFNO (working F/#) | 11 |
| Resolution (μm) | 5 |
| Depth of field (mm) | 1 |
| Field of view on 1/2" (6.4x4.8) (mm x mm) | 6.4x4.8 |
| Field of view on 1/1.8" (7.13x5.37) (mm x mm) | 7.1x5.3 |
| Field of view on 2/3" (8.8x6.6) (mm x mm) | 8.8x6.6 |
| Sensor format | 2/3" |
| Aperture | F/11 (working F-number) |
