Macro/megapixel telecentric lens, WD 110 mm, 0.3x, WD 110 mm, 2/3", C-mount (LS-VDH03-110C-230)
$329.00

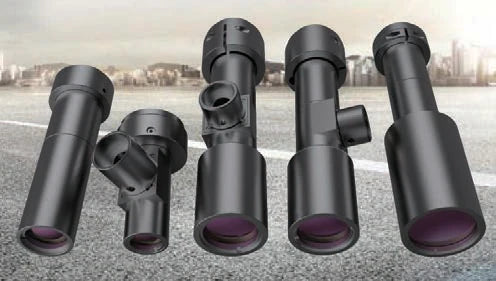

Full range of object-side telecentric fixed-magnification lenses with multiple working distances, magnifications and CCD sizes to select. High contrast, low distortion and high resolution in a compact design, with coaxial illumination options.
Features
- Full range of object-side telecentric fixed magnification lenses
- Multiple working distances / magnifications / sensor sizes for selection
- Supports all kinds of megapixel cameras
- High contrast, low distortion, high resolution
- Compact design with coaxial illumination options
- Full range of object side telecentric fixed magnification lenses, with multiple working distances / magnifications / CCD sizes for selection
- Perfect image and supports all kinds of megapixel cameras
- High contrast, low distortion, high resolution, compact design with coaxial illumination options
Applications
- High-precision visual positioning
- High-precision visual positioning and similar applications
Specifications
| Model | LS-VDH03-110C-230 |
|---|---|
| WD (mm) | 110 |
| Max sensor size (mm) | 11.0(2/3") |
| Mount | C-mount |
| Working distance (mm) | 110 |
| Max sensor size (dia. mm) | 11.0(2/3") |
| Mag. (x) | 0.3 |
| WFNO | 5.6 |
| Distortion (% max) | <0.02 |
| Resolution (um) | 3.75 |
| DoF (mm) | 0.5 |

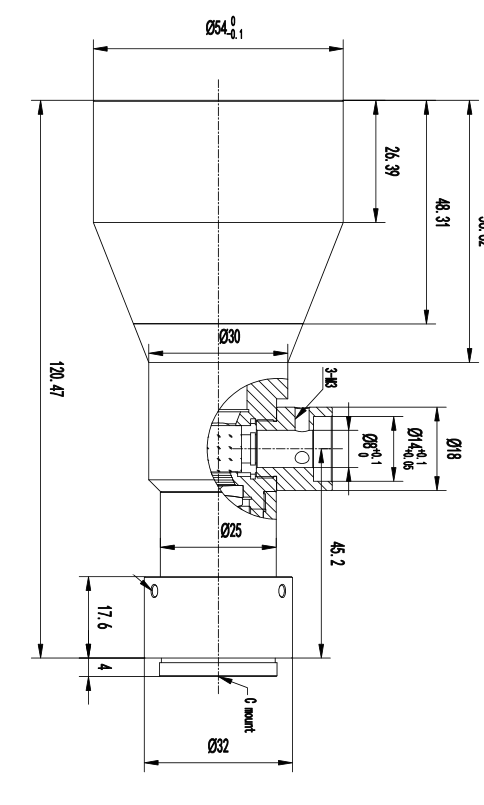

| Length (mm) | 120.47 |
| Coaxial light | Yes |
| Field of view on 1/2" (6.4x4.8) (mm) | 21.3 x 16 |
| Field of view on 1/1.8" (7.13x5.37) (mm) | 23.7 x 17.9 |
| Field of view on 2/3" (8.8x6.6) (mm) | 29.3 x 22 |
| Magnification (x) | 0.3 |
| WFNO (working F/#) | 5.6 |
| Resolution (μm) | 3.75 |
| Depth of field (mm) | 0.5 |
| Field of view on 1/2" (6.4x4.8) (mm x mm) | 21.3x16 |
| Field of view on 1/1.8" (7.13x5.37) (mm x mm) | 23.7x17.9 |
| Field of view on 2/3" (8.8x6.6) (mm x mm) | 29.3x22 |
| Sensor format | 2/3" |
| Aperture | F/5.6 (working F-number) |
