100 mm dia. Collimated Spot Light (LS-TP-100)
$759.00
100 mm dia. Collimated Spot Light. Collimated light in which high-power LED chips produce parallel light through a condensing lens, suitable for applications needing parallelism or medium-to-long distance illumination. Used for high-precision dimension inspection, deep-hole measurement and surface defect detection.
Features
- High-power LED chips produce parallel light through a condensing lens, suitable for applications needing parallelism or medium-to-long distance illumination.
Applications
- High-precision dimension inspection
- Medium to long-distance illumination
- Deep hole measurement of products
- Surface defect detection
Specifications
| Model | LS-TP-100 |
|---|---|
| Emitting area (mm) | ø100 |
| Voltage (V) | 5 |
| Power R (W) | 5 |
| Power W/B/G (W) | 8 |

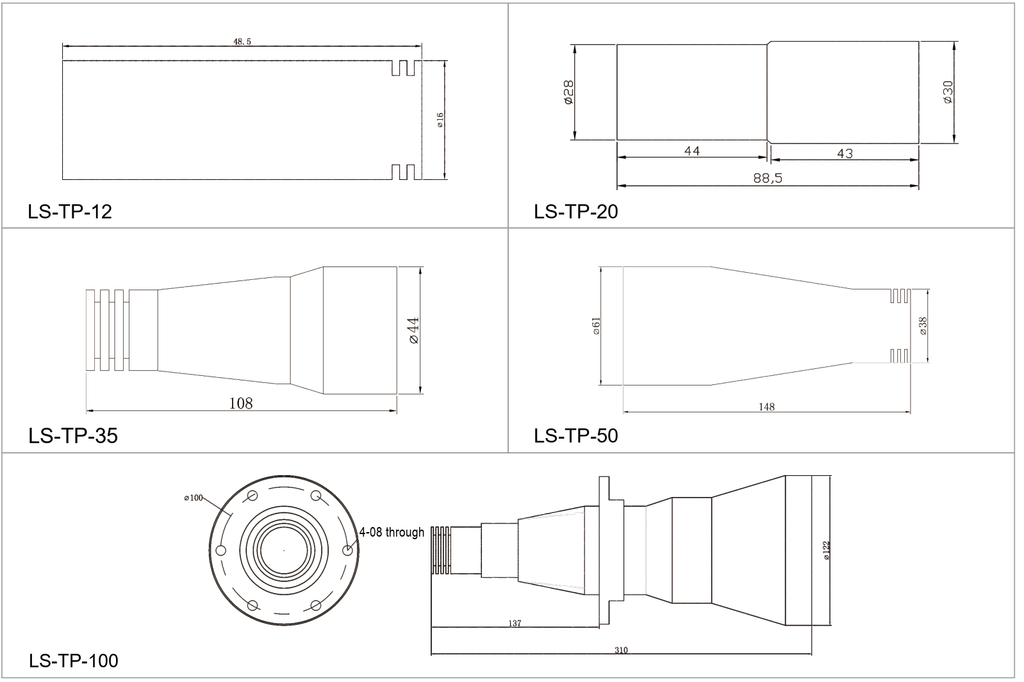

| Outer size ODxH (mm) | 122X310 |
| Colours | Red, Green, Blue, White |
| LED colour options (legend) | R / G / B / W |
| Colours shown per model | R, G, B, W |
| Shipping weight (estimated) | 2.00 kg |
