7 mm dia. Spot Light (LS-TF-21-08-3)
$139.00
7 mm dia. Spot Light. Spot light used with a coaxial lens for LED die bonding, chip character inspection and mark point location. A special lens combination achieves high-brightness, high-uniformity spot illumination.
Features
- Special lens combination.
- Achieving high-brightness, high-uniformity spot illumination.
Applications
- Used with coaxial lens
- LED die bonding
- Chip character inspection
- Mark point location
Specifications
| Model | LS-TF-21-08-3 |
|---|---|
| Emitting area (mm) | 7 |
| Connection dia (mm) | 8 |
| Voltage (V) | 5 |
| Power (W) | 3 |
| Outer size ODxH (mm) | 21x58 |
| Colours | Red, Green, Blue, White |
| LED colour options (legend) | R / G / B / W / IR / UV |
| Colours shown per model | R, G, B, W |

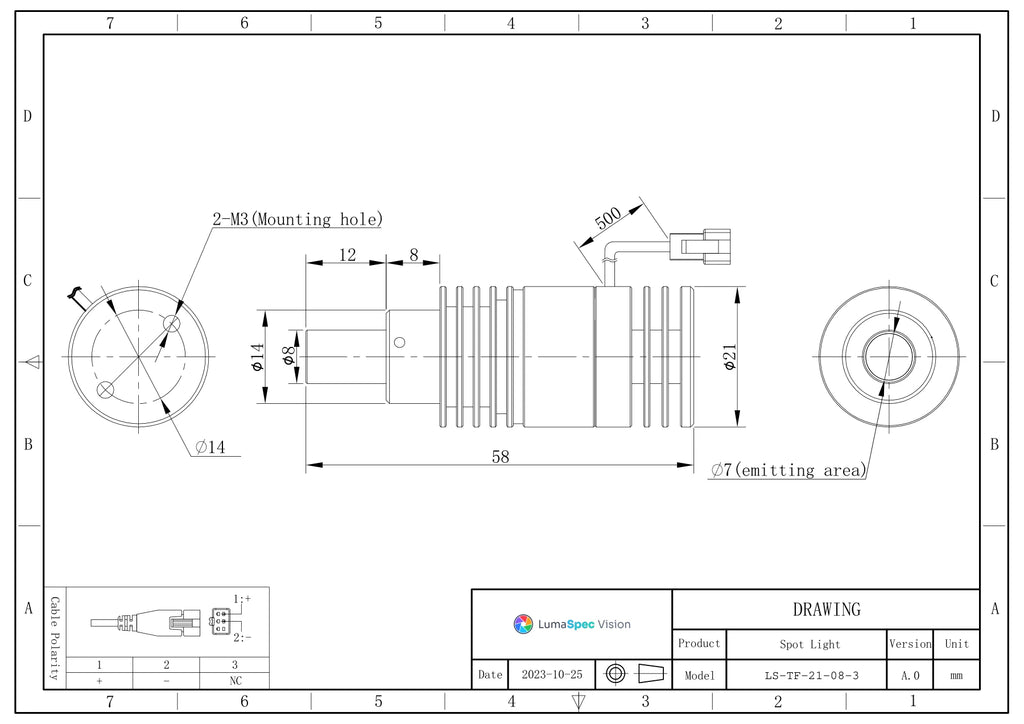

| Cable length | 500 mm (per dimension drawings) |
| Shipping weight (estimated) | 0.20 kg |
