Strobe controller, SPS series, 4 ch, 120 W (LS-SPS24120C-4TD)
$169.00
Strobe controller with output pulse width set from 1 us to 990 us; instant brightness can be raised to above 400% while extending light life. It outputs camera trigger signals and works with external or internal fixed-frequency triggering.
Features
- Output pulse width set from 1us~990us; pulse width can be set as a ratio
- Instant brightness can be raised above 400% and prolongs usage life
- Automatically outputs the camera trigger signal and takes photos at the same time
- External trigger mode turns lights on as requested; internal trigger mode turns lights on at a fixed frequency
Specifications
| Model | LS-SPS24120C-4TD |
|---|---|
| Operating temp/humidity | 0~40 °C, 20~85 %RH (non-condensing) |
| Storage temp/humidity | 20~60 °C, 20~85 %RH (non-condensing) |
| Drive method | Constant voltage |
| Pulse width adjustment mode | Panel knob / RS232 / Ethernet |
| Pulse width | 1us~990us |
| Input voltage | AC100-240V 50/60Hz |
| Channel | 4 |
| Output voltage | 48V |
| Max output current | Peak value 10A (single channel) |
| Total power | 120W |
| Output port | SMP-03V-BC (1: output+, 2: NC, 3: output-) |
| External trigger voltage | DC5V~24V (current about 5.6mA) |
| Trigger delay | <2us |
| Cooling method | Forced cooling |

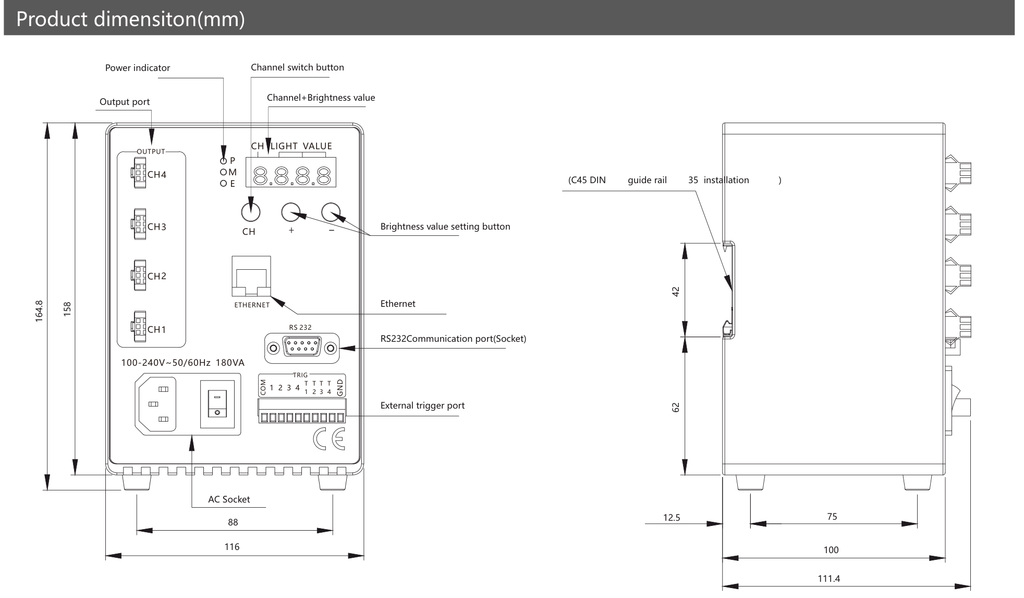

| Dimensions (mm) | 116 W x 164.8 H x 111.4 D (100 body depth) |
| Mounting | 35 mm DIN rail (C45) |
| Trigger port | COM, 1-4 trigger inputs, T1-T4 camera trigger outputs, GND; NPN or PNP control |
| Channels | 4 |
| Total output (W) | 120 |
| Control | Panel knob / RS232 / Ethernet |
