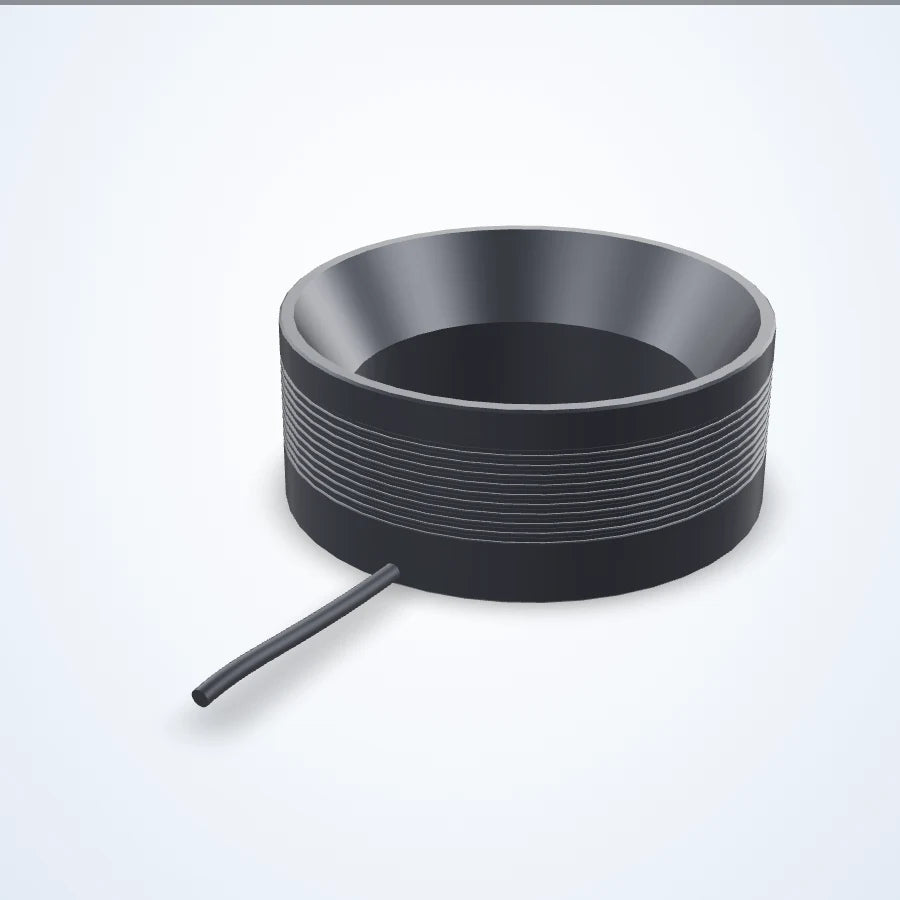

100 mm OD Low-Angle Ring Shadowless Light (LS-SLR-100)
$209.00
100 mm OD Low-Angle Ring Shadowless Light. Low angle ring shadowless light with high-density LEDs arranged vertically and special light-guiding diffusion. Its efficient low-angle lighting enhances surface features and reduces reflective glare.
Features
- Good uniformity, suitable for low-angle illumination.
- High-density LEDs arranged vertically with special light-guiding diffusion.
- Reduces reflective glare.
- Efficient low-angle lighting enhances surface features.
Applications
- Surface damage inspection
- IC tape inspection
- BGA/QFP position inspection
- Connector pin spacing/offset detection
- Metal scratches detection
- Metal surface detection
- Reflective plastic part surface detection
- Defect detection for glass lenses
Specifications
| Model | LS-SLR-100 |
|---|---|
| Voltage (V) | 24 |
| Power R (W) | 4.6 |
| Power W/B/G (W) | 5 |

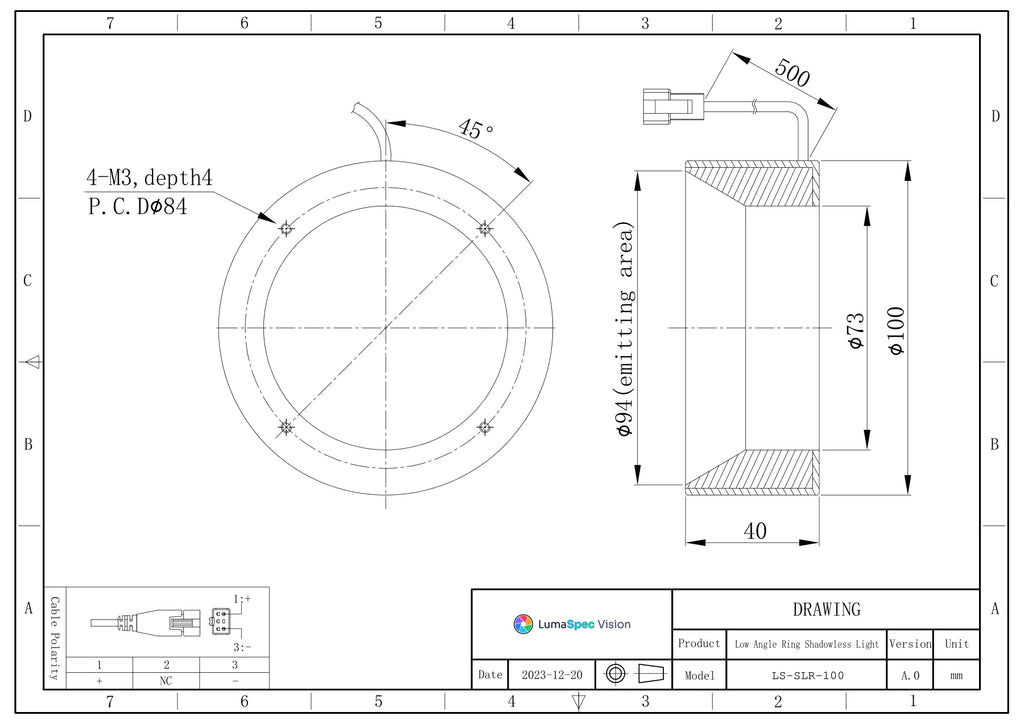

| OD x ID x H (mm) | 100x73x40 |
| Colours | Red, Green, Blue, White |
| Cable lead (mm, per drawings) | 500 |
| Shipping weight (estimated) | 0.30 kg |
