0.075x, WD 220 mm, 1", C-mount Telecentric Lens (LS-S1DA215)
$4,239.00
0.075x, WD 220 mm, 1", C-mount Telecentric Lens. At a glance: magnification 0.075x; working distance 220 mm; sensor class 1"; object field of view 215 mm; object-side resolution 39.1 µm.
Specifications
| Model | LS-S1DA215 |
|---|---|
| Sensor class | 1" |
| Telecentric type | Telecentric |
| Object field of view (dia. mm) | 215 |
| Magnification (x) | 0.075 |
| Working distance (mm) | 220 |
| Max sensor size (dia. mm) | 16(1") |
| Image-side F/# | 4.35 |
| Image-side MTF30 (lp/mm) | >195 |
| Theoretical depth of field (mm) | ±30.9@F4.35 |
| Image-side distortion (% max) | <0.05 |
| Telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 560 |
| Numerical aperture NA | 0.00857 |
| Object-side resolution (um) | 39.1 |

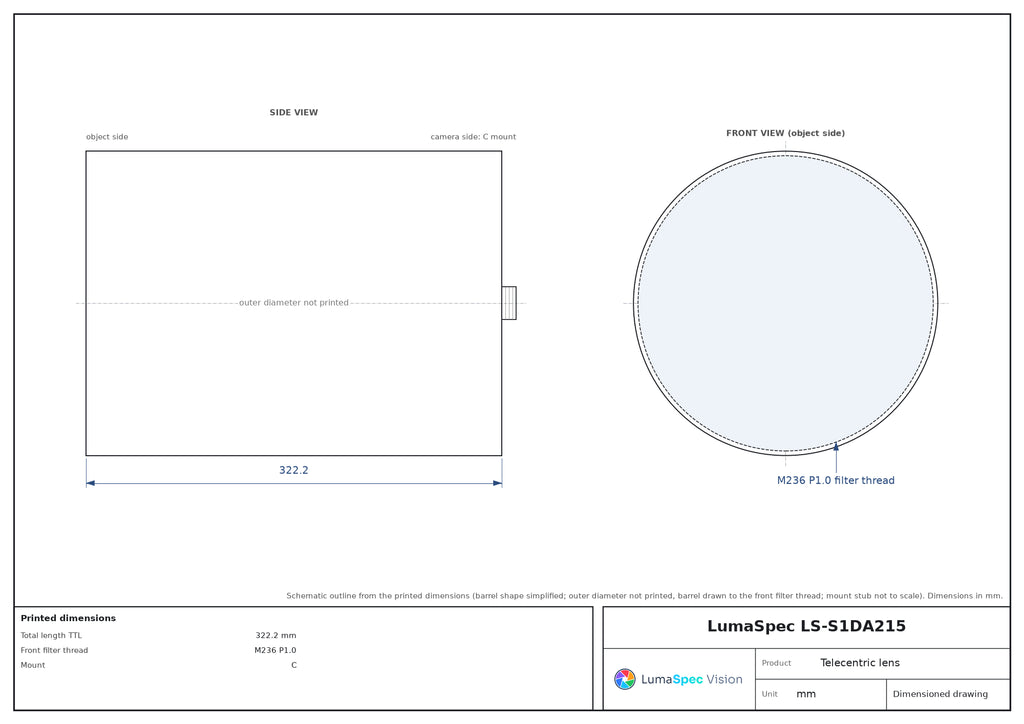

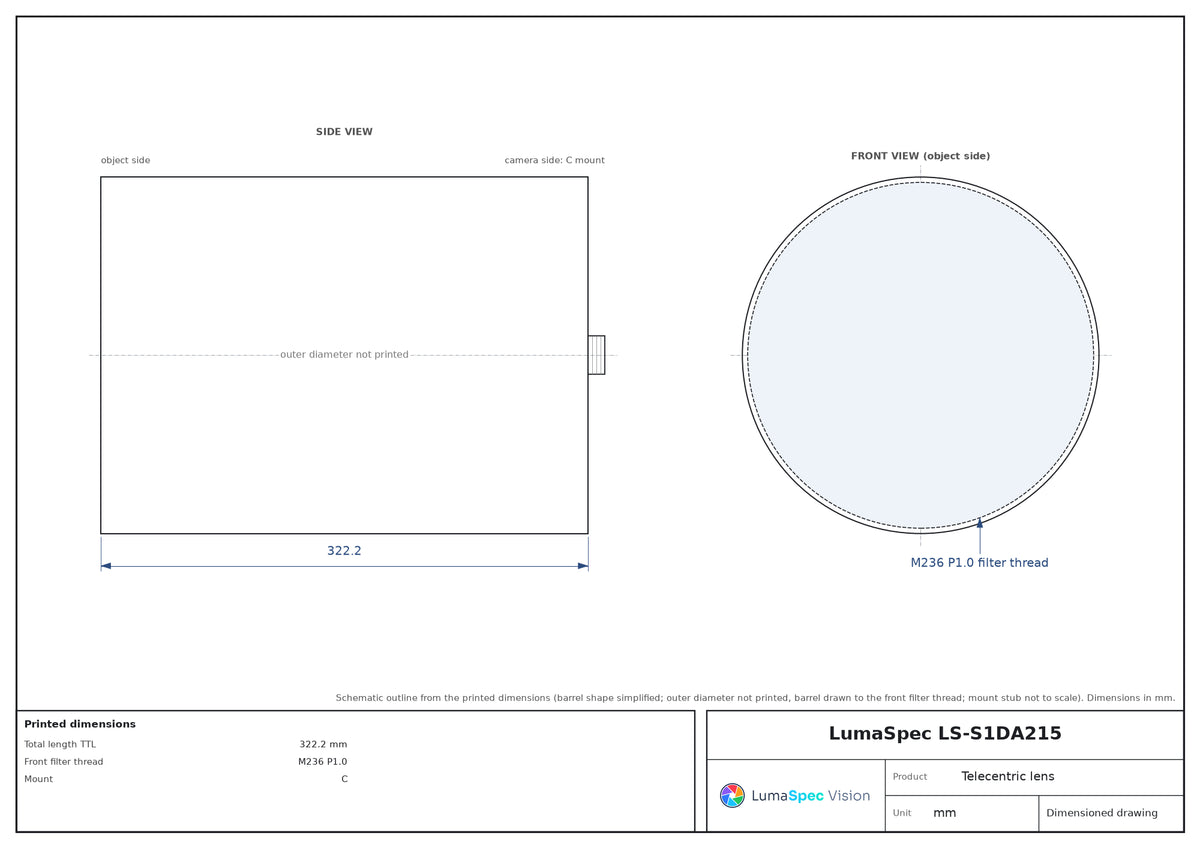

| Total length TTL (mm) | 322.2 |
| Mount | C |
| Net weight (kg) | 8.45 |
| Manual iris | No |
| Coaxial illumination | No |
| Front filter thread | M236 P1.0 |
| Shipping weight (estimated) | 11.93 kg |
Photo shows a representative model of this series; see the specifications for this model.
