Four-side adjustable bar light (ROS series) (LS-ROS154-R/G/B/W)
Red
$119.00
Skip to product information

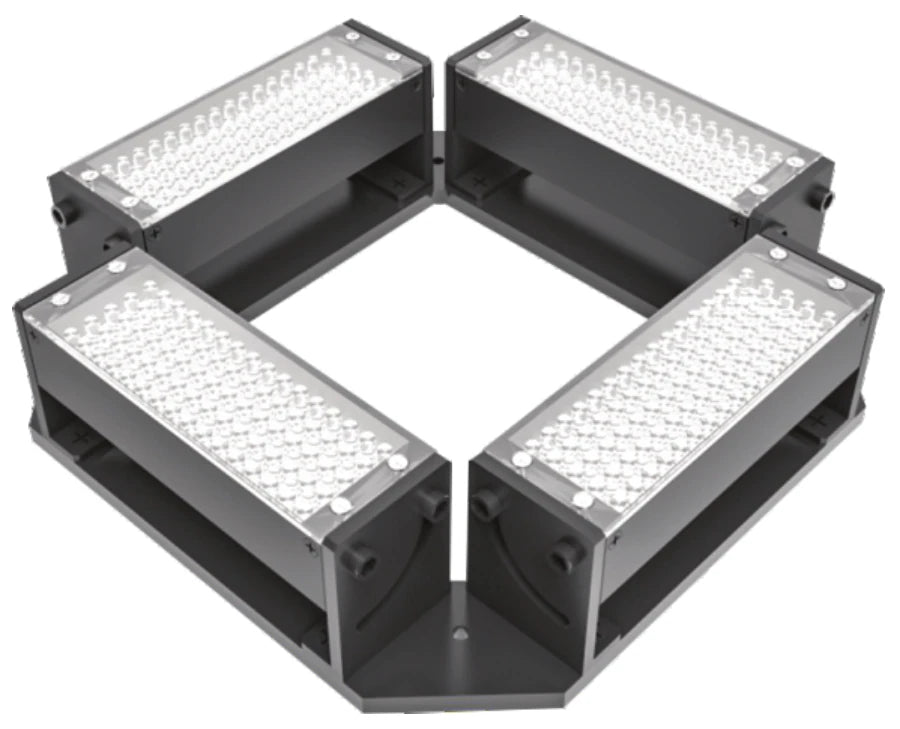

Four-side adjustable bar light (ROS series) (LS-ROS154-R/G/B/W)
$119.00
Four bar light units on a holder, each side controlled individually and freely adjustable from 0-90 degrees. Good uniformity and a large illumination area; suited to large-area illumination.
Features
- Good uniformity and large illumination area
- Individually controlled lighting units from 4 sides, freely adjustable angle from 0-90 degrees
- Best choice for large area illumination and adapts to many occasions
- The adjustment range of each light source is within 90°; the combined angle of the four light sources can be adjusted freely according to the site
Applications
- Soldering inspection
- Exterior and cracks of ceramic-mounted objects
- Electronic component inspection
- Mark positioning
- Packaging bar code inspection
- Scratch inspection of touch screen
- Keyboard character recognition
- Appearance inspection of solar battery plate
- Mobile phone shell logo inspection
Specifications
| Model | LS-ROS154-R/G/B/W |
|---|---|
| Adjustable angle | 0-90° per side |
| Cable length | 500 mm (drawings) |
| Item | 3 |
| Power R (W) | 13 |
| Power G/B/W (W) | 26 |
| L (mm) | 154 |
| W (mm) | 154 |
| H (mm) | 42 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
