100 mm OD High-Power LED Ring Light (LS-PLR-100-90)
$259.00
100 mm OD High-Power LED Ring Light. High power ring light built on a high-power LED array with a condenser lens, giving a more concentrated beam and higher brightness for long-distance, high-brightness lighting.
Features
- Designed by the high power LED array, supported by a condenser lens, so more light beam, higher brightness.
- Can achieve long-distance high brightness lighting.
Applications
- Remote shooting lighting
- High-speed motion shooting lighting
- Medical lighting
Specifications
| Model | LS-PLR-100-90 |
|---|---|
| LED rows | 1 |
| Angle (°) | 90 |
| Voltage (V) | 24 |
| Power R (W) | 8.4 |
| Power G/B/W (W) | 9.1 |

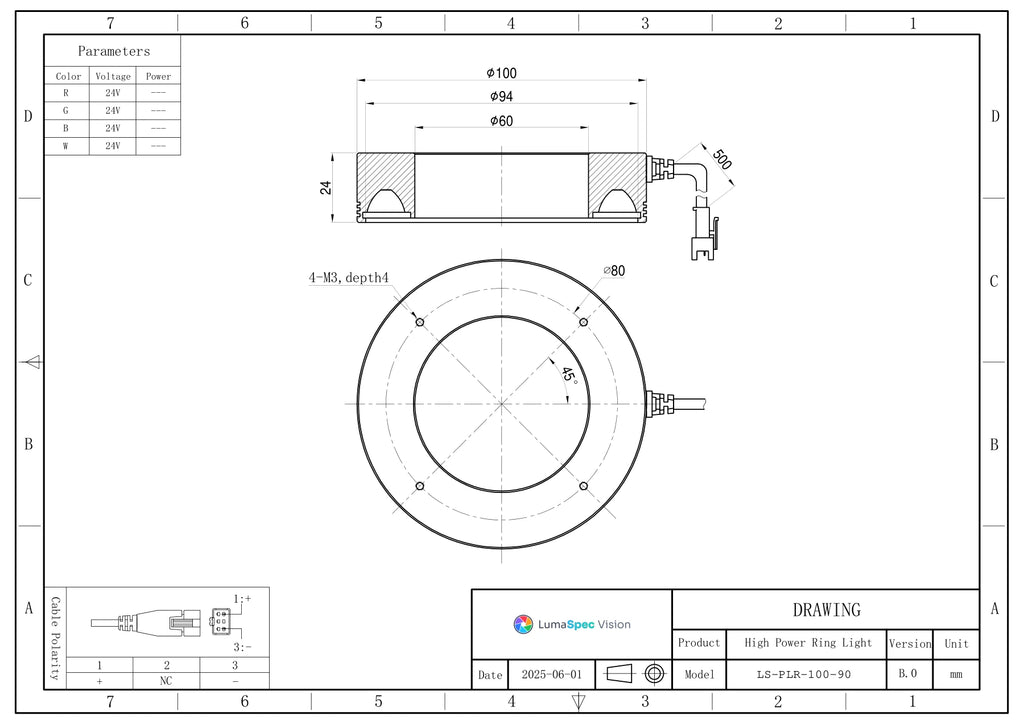

| OD x ID x H (mm) | 100x60x24 |
| Colours | Red, Green, Blue, White |
| Model code | LS-PLR-<outer diameter>-<angle>-<color>, e.g. LS-PLR-75-90-W |
| Illumination chart | PLR-100-90: illuminance (lx) vs working distance (mm); uniformity maps at LWD 80/100/120 mm |
| Shipping weight (estimated) | 0.30 kg |
