LumaSpec Vision

$39.00

Pen-shaped mini industrial camera with integrated M12 lens, diameter only 20 mm, and Gigabit network interface.

Integrated M12 lens, small size, diameter only 20mm
Interchangeable lens, unlimited field of vision
Gigabit network interface, 100m long-distance stable transmission
Built-in hardware accelerates image processing and reduces CPU utilization at the host end
Compatible with the vision standard, drive free, directly supports Halcon, VisionPro and other software

Model	LS-MV-T3Y232GC/M
Acquisition mode	Continuous/soft trigger/hard trigger
Frame buffer	128MB
User-defined data area	2KB
GPIO	1 way flash output
Lens mount	M12 x 0.5
Vision standard protocol	GigE Vision V1.2, GenICam
Data interface	RJ45 Gigabit Ethernet interface, backward compatible with 100M network
Working temperature @ humidity	0~50℃ @ 20%~80% (no condensation)
Storage temperature @ humidity	30~60℃ @ 20%~95% (no condensation)
Operating system	WINXP, WIN7/8/10 32&64 bit systems, Linux and ARM Linux drivers, Android platform drivers, MAC OS systems
Driver	Directshow component, Halcon dedicated component, Labview dedicated driver, OCX component, TWAIN component
Programming language pack	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functions	Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
Resolution @ frame rate	1920 x 1200@52FPS
Pixel size	3.0μm x 3.0μm
Pixel bit depth	8bit
Field of view (standard product)	15.8 x 7mm
Object distance (standard product)	100mm
Maximum gain (multiple)	16
Exposure time range (ms)	0.014~917.5
Sensitivity	Color: 3.1V/lux x s; Mono: 3.6V/lux x s
Power supply	12V
Power	<2.66W

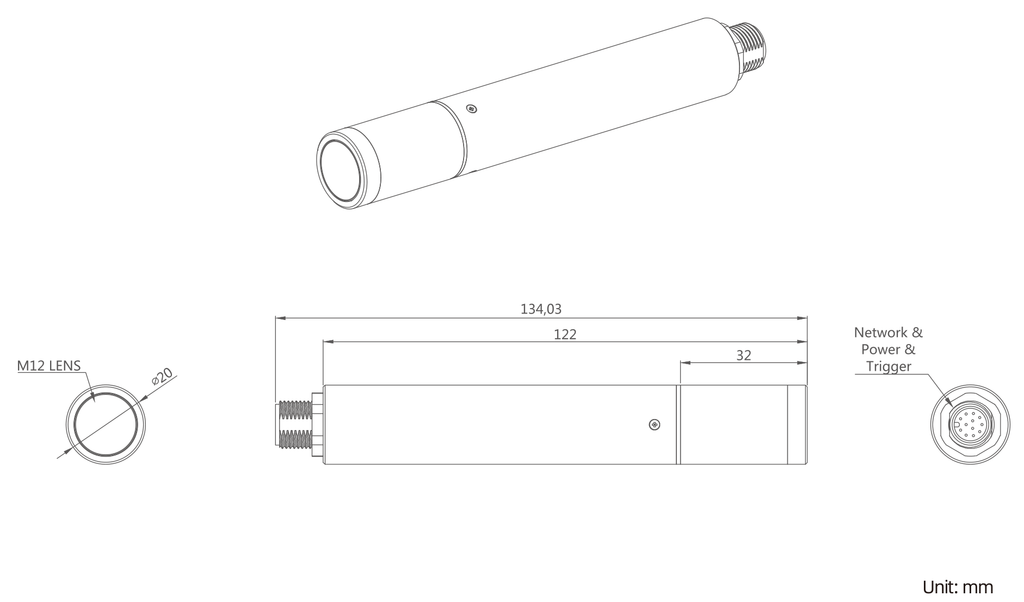

Dimensions	20 x 122mm (excluding back-end interface size)
Weight	<100g
Mono / colour	Colour/Mono
Voltage	12 V DC

Pen mini camera (LS-MV-T3Y232GC/M)
