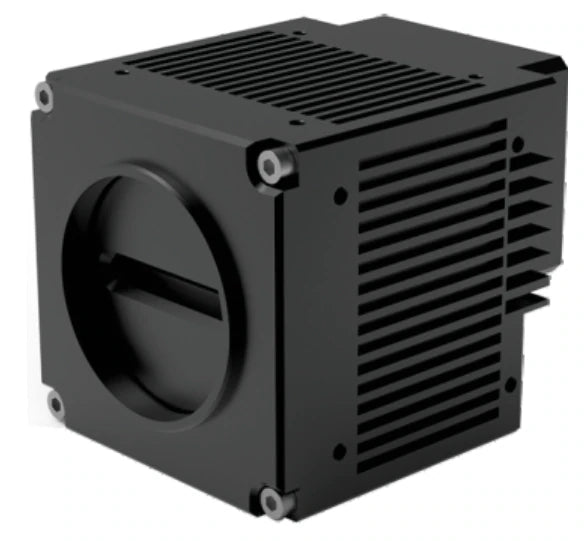

10 GigE line scan camera, 256 MT (TDI) series, 16K, 10GigE, Mono (LS-MV-L162MT-10G)
$1,729.00
256-stage TDI 10 GigE line scan cameras using domestic linear array chips, in three specifications (LS-MV-L042MT-10G / LS-MV-L082MT-10G / LS-MV-L162MT-10G) with 4096/8192/16384 line pixels and line frequency up to 250K/144K/72K, for high speed and stability.
Features
- 5um pixel, 10 GigE interface
- 256-stage TDI, reducing the demand on the light source
- Sensor line frequency up to 250k/200k (sensor output pixel width 10bits/12bits)
- Supports 256-line area array focusing mode
- Gain and Offset programmable settings, flat-field correction supported
- Encoder synchronous trigger, photoelectric sensor and encoder combination trigger modes
Specifications
| Model | LS-MV-L162MT-10G |
|---|---|
| Sensor line frequency | 250k/200k (sensor output pixel width 10bit) |
| Ad width | 12bit (refers to the width supported by sensor) |
| Pixel size | 5μm×5μm |
| Data bit width | 8/12bits (camera output data width to user) |
| Data format | Mono |
| Color specification | Mono |
| TDI | 256TDI |
| Dynamic range | low sensitivity mode: 65dB; high sensitivity mode: 67dB |
| Sensitivity | Low sensitivity mode: 80 DN/nJ/cm2 @530nm; high sensitivity mode: 340 DN/nJ/cm2 @530nm |
| Transmission mode | GigE Vision V1.2, GenICam |
| Transmission interface | 10 gigabit network port (10 gigabit copper cable 10GBase-T, compatible with 100M/1G/2.5/5G) |
| Working temperature | 0-50℃ |
| Working humidity | 20-80% (without condensation) |
| Storage temperature | 30-60℃ |
| Storage humidity | 20-95% (without condensation) |
| Power supply | 12V±10% |
| Resolution | 16384×256 |
| Sensor type | CMOS-TDI |
| Shutter method | Global |
| Line frequency | 72/48KHZ |
| Target size | 82.666mm |
| Minimal exposure | 0.004ms |
| Colour | Mono |
| Sensor size | 82.666mm (photosensitive area) |
| Lens interface | M90, flange distance 12mm |
| Exterior dimensions | 110×110×66.81mm (excluding lens holder and rear shell interface) |
| Weight | <1500g |
| Camera line frequency | 72k (8bit) / 48k (12bit) |
| Power | <14W |
| Mount | M90 |
| Mono / colour | Mono |
| Voltage | 12V±10% |
