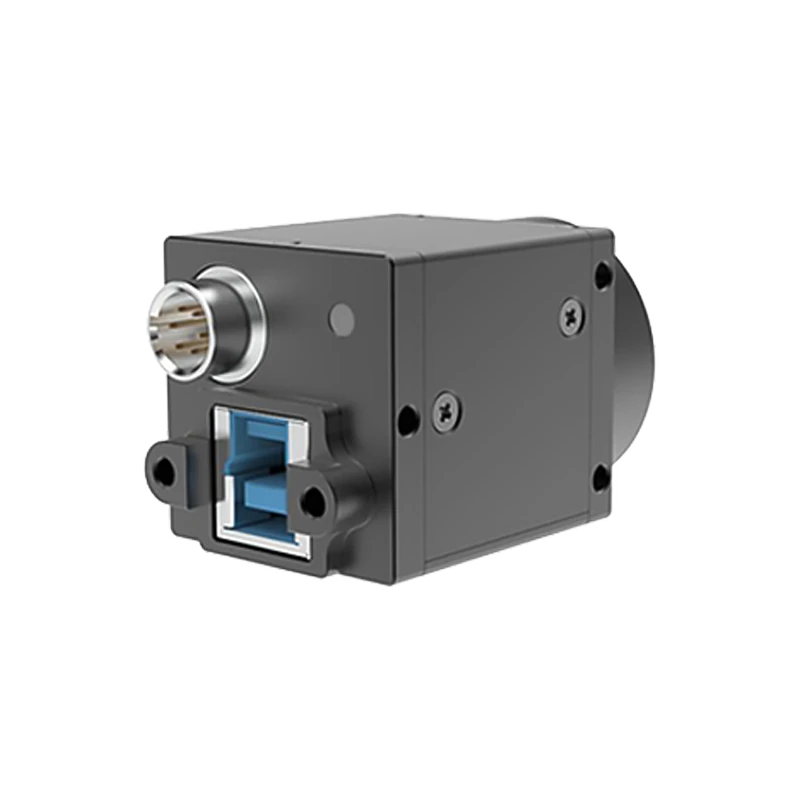

USB3.0 area scan camera, FU series, 8.8 MP, USB3, Color/Mono (LS-MV-FU890GC/M)
Color
$1,489.00
Skip to product information
USB3.0 area scan camera, FU series, 8.8 MP, USB3, Color/Mono (LS-MV-FU890GC/M)
$1,489.00
USB3.0 area scan cameras with 5Gbps transmission bandwidth and high-speed sensors: a 0.3MP camera reaches 800 fps with a minimum transmission time of 1.2 ms and a 20MP camera reaches 18fps; one computer can run multiple cameras at high frame rate. Low CPU utilization through DMA transmission. Widely used in electronic 3C, semiconductor automation, logistics code scanning, intelligent transportation, biomedicine, packaging and printing.
Features
- Programmable IO, supports external trigger and flash synchronous photography
- Supports 16bit gray and 48bit color lossless format output
- 0.3MP to 20MP CMOS, multiple global shutter cameras available
- One computer can connect multiple cameras and work stably for a long time without dropping frames
- Fully compatible with the GigE camera SDK, seamless replacement
- Supports PC Linux and ARM Linux, can be integrated into embedded devices
- Supports vision protocols; compatible with Halcon, VisionPro, LabVIEW and other vision software
- Camera comes with programmable IO.
- Supporting 8bit raw data output.
- Compatible with gige Camera SDK.
- Supports PC Linux system and ARM Linux system.
- Compatible with Vision protocol and other brand vision software.
Applications
- Electronic 3C
- Semiconductor automation
- Logistics code scanning
- Intelligent transportation
- Biomedicine
- Packaging and printing
Specifications
| Model | LS-MV-FU890GC/M |
|---|---|
| Vision standard | USB3Vision 1.0, GenICam |
| Data interface | USB3.0 |
| Operating system | WIINXP, WIN7/8/10 32@64-bit system, Linux and ARM Linux driver (customizable), Android platform driver (customizable) |
| Driver | Directshow component Halcon special component Labview special driver OCX component TWAIN component |
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Working temperature @humidity | 0~50℃ @ 20%~80% (no condensation) |
| Storage temperature @humidity | 30~60℃ @ 20%~95% (no condensation) |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| Tailpiece suffix options (AU/FU/CU/2SU) | T1V-C: line sequence definition 1, 12V power supply, power supply shrapnel type aircraft head, C-mount, Recommend; -T: line sequence definition 2, aircraft head, CS-mount, planned shutdown; -T-C: line sequence definition 2, aircraft head, C-mount, planned shutdown; -TV-C: line sequence definition 3, 12V power supply, aircraft head, C-mount, planned shutdown |
| Connector pinout -T1V-C (Port A) | 1 Red PWR+ (camera power input positive); 2 White GPI1+/TRIG_IN+ (default trigger input); 3 Brown GPI2/GPO2 (non-isolated bidirectional IO); 4 Green GPO1+/STRB_OUT+ (default flash output); 5 Yellow GPO1-/STRB-OUT-/TRIG_IN- (GPIO common negative terminal); 6 Black PWRGND |
| Connector pinout -T, -T-C | 1 Green GPO1+/STRB_OUT+ (default flash output); 2 Yellow GPO1-/STRB_OUT- (default flash output); 3 White GPI1+/TRIG_IN+ (default trigger input); 4 Brown GPI1-/TRIG_IN- (default trigger input); 5 Red GPO2+; 6 Black GPO2 |
| Connector pinout -TV-C (Port A) | 1 Green GPO1+/STRB_OUT+; 2 Yellow GPO1-/STRB_OUT; 3 White GPI1+/TRIG_IN+; 4 Brown GPI1-/TRIG_IN-; 5 Red PWR+; 6 Black PWRGND |
| E ff ective pixels | 8.9MP |
| Sensor | CMOS |
| Shutter | Global |
| Max resolution | 4096×2160 |
| Pixel size | 3.45μm |
| Frame rate(FPS) | 32 |
| Target size | 1" |
| Mini exposure | 0.0141ms |
| Sensor model | IMX267 |
| Color | Color/Mono |
| Sensor (product page) | 1" CMOS |
| Pixel size (product page) | 3.45X3.45μm |
| Resolution @ frame rate | 4096X2160@32FPS |
| Pixel bit depth | 12bit |
| Sensitivity | 1146 mV/915mV |
| GPIO | 1 trigger input, one flash control output;1 GPO output |
| Synchronization | Continuous/software trigger/hardware trigger |
| Maximum gain | 249.9 |
| Exposure time(ms) | 0.034~29546.9 |
| Filter | 650nm infrared cut-off filter is standard/Standard double-sided AR anti-reflection film |
| Frame buffer | 128M Bytes |
| Camera custom data | 2K Bytes |
| Video output format | Bayer8/Mono8 |
| Visual standard protocol | USB3Vision 1.0GenICam |
| Lens mount | C |
| Power supply | 5V,USB Bus power supply |
| Power | <4.2W |

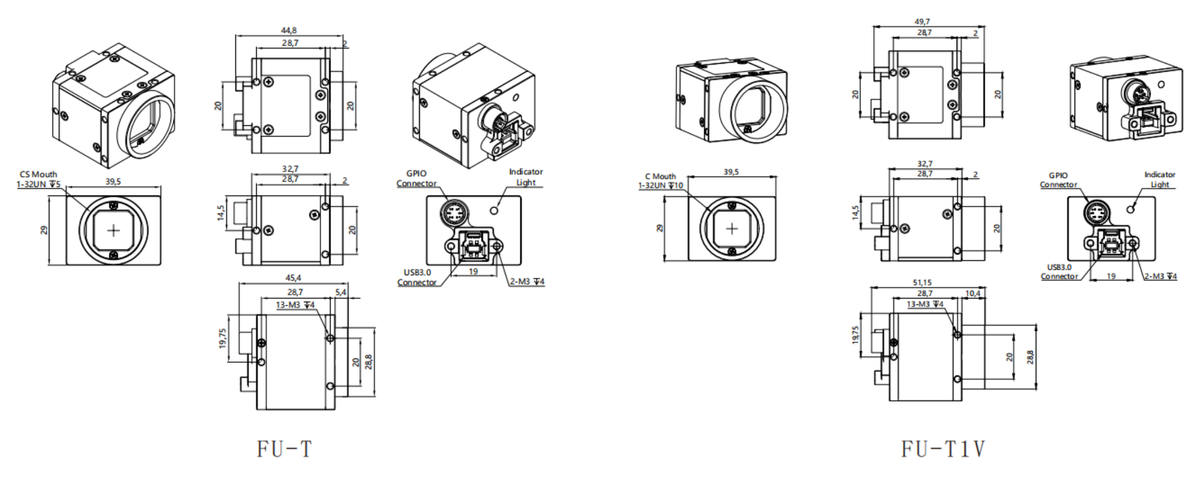

| Dimensions | 29(mm)X39.5(mm)X32.7(mm) (Excluding the lens base and rear case interface) |
| Weight | 100g |
| Working temperature | 0~50° |
| Storage temperature | 30~60° |
| Drivers | Directshow component Halcon Dedicated Component Labview Dedicated Driver OCX Component TWAIN component |
| Programming language package | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Pixels | 8.9MP |
| Sensor type | CMOS |
| Shutter method | Global |
| Maximum resolution | 4096×2160 |
| Frame rate (FPS) | 32 |
| Minimum exposure | 0.0141ms |
| Colour | Color/Mono |
| Resolution@frame rate | 4096×2160@32FPS |
| Pixel size (detail) | 3.45μm×3.45μm |
| Acquisition mode | Continuous/soft trigger/hard trigger |
| Maximum gain (multiple) | 250 |
| Exposure time range (ms) | 0.0141~29546.9 |
| User-defined data area | 2K Bytes |
| Sensor format | 1" |
| Mono / colour | Color/Mono |
| Voltage | 5V,USB Bus power supply |
