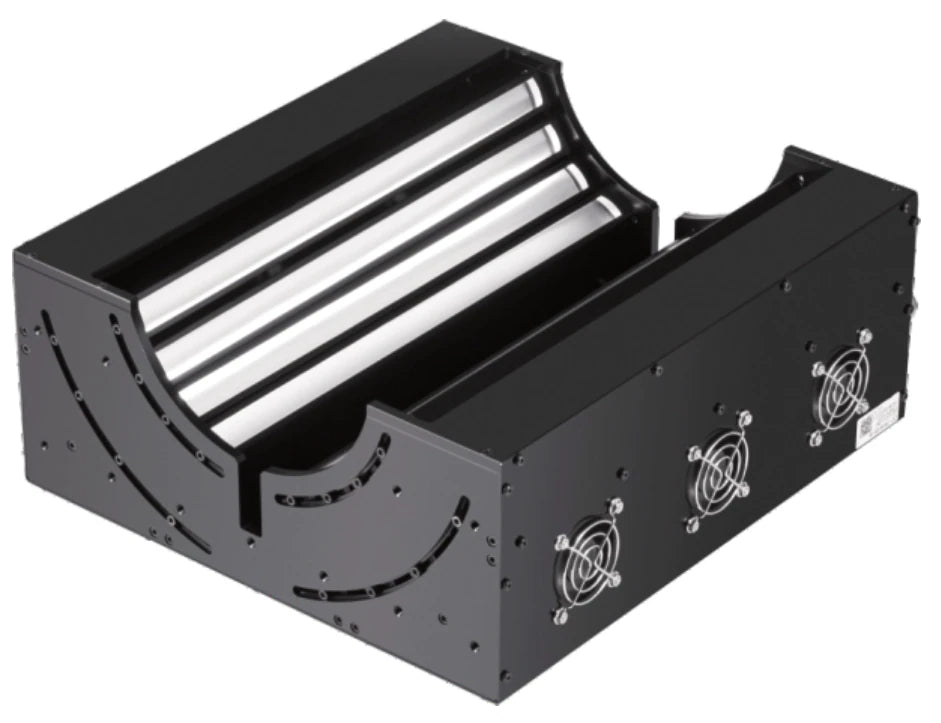

Multi-angle line light, MAS series (LS-MAS302-W)
$729.00
Skip to product information
Multi-angle line light, MAS series (LS-MAS302-W)
$729.00
Special optical design with high brightness and anti-reflection; concentrated, highly uniform light. The brightness and number of line lights can be adjusted separately to actual needs.
Features
- Special optical design, high brightness, anti-reflective
- Luminous concentration, high uniformity
- The brightness and quantity of line lights can be adjusted separately according to actual needs
Applications
- Defect inspection of mobile phone glass cover plates
- Mobile phone screen defect inspection
- Backlight module inspection
- Metal surface scratch inspection
- Inspection of products moving at high speed
- Card surface defect inspection
Specifications
| Model | LS-MAS302-W |
|---|---|
| Storage temperature | 20-60 °C |
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Warranty | 1 year free maintenance or replacement for faults not caused by the user |
| Optional accessories | Extension cable |
| Controller | LS-MAS302-W, LS-2MAS236-W (the selected controller should match the power of the light source) |
| Cable | 2 x 500 mm |
| Power (W) | 142 |
| Version | MAS |

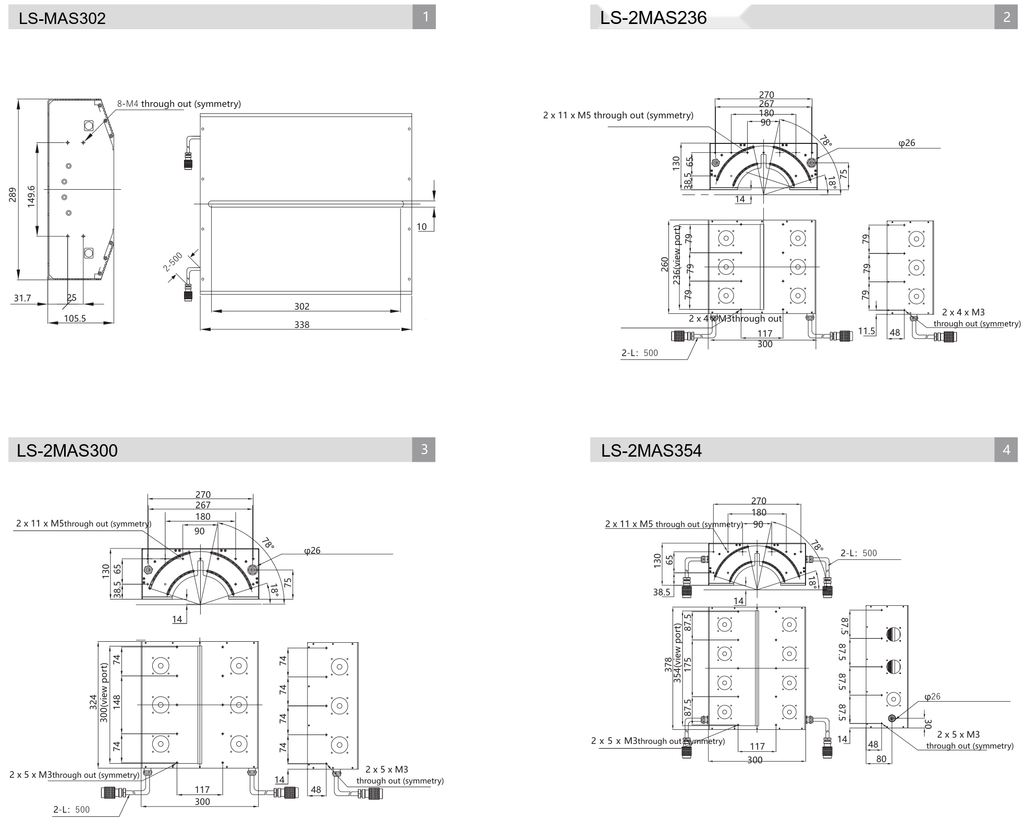

| Outer dimensions (mm) | 338 long, 289 high, 105.5 deep |
| Mounting | 8-M4 through (symmetric) |
