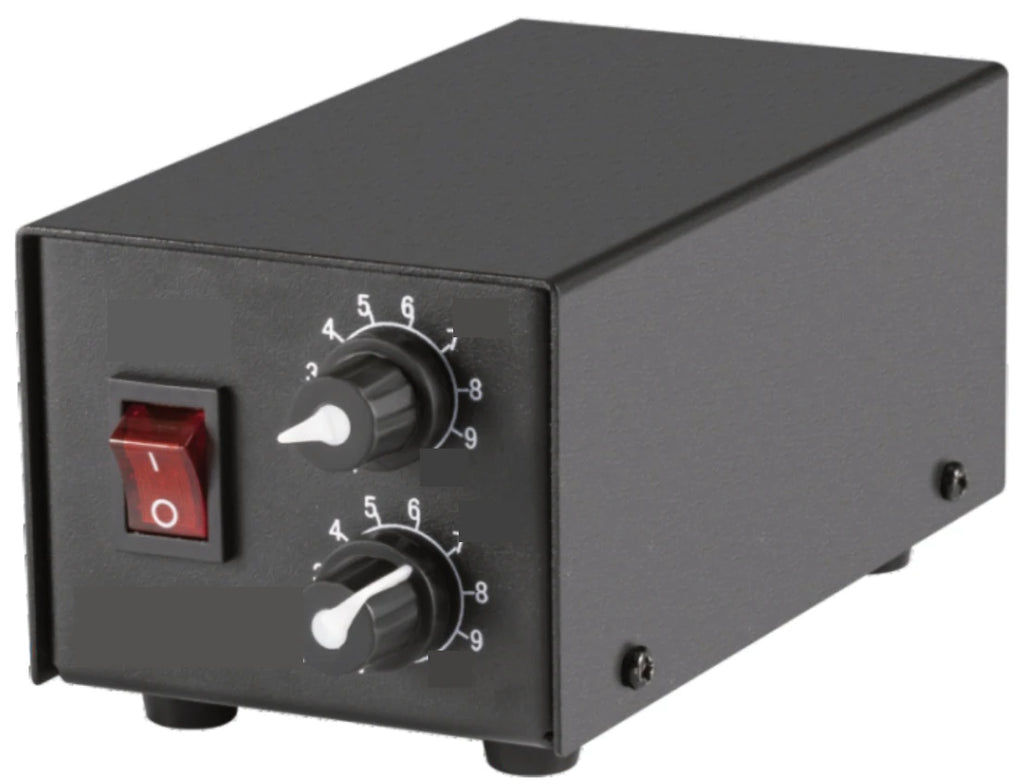

Analog controller, MAPS series, 2 ch, 20 W (LS-MAPS2420A-2)
$109.00
Compact analog controller with PWM control and low heat, an AC100~240V international switching supply, small and light for flexible installation.
Features
- PWM control, low calorific value
- AC100~240V international switching power supply
- Small, light and flexible installation
Specifications
| Model | LS-MAPS2420A-2 |
|---|---|
| Operating temp/humidity | 0~40 °C, 20~85 %RH (non-condensing) |
| Storage temp/humidity | 20~60 °C, 20~85 %RH (non-condensing) |
| Drive method | Constant voltage |
| Light control mode | PWM control, panel knob |
| PWM frequency | 16KHz |
| Input voltage | AC100-240V 50/60Hz |
| Output voltage | 24V |
| Max output current | 0.83A (single channel max current 0.83A) |
| Total power | 20W |
| Output port | SMP-03V-BC (1: output+, 2: NC, 3: output-) |
| Cooling method | Natural cooling |
| Channel | 2 |

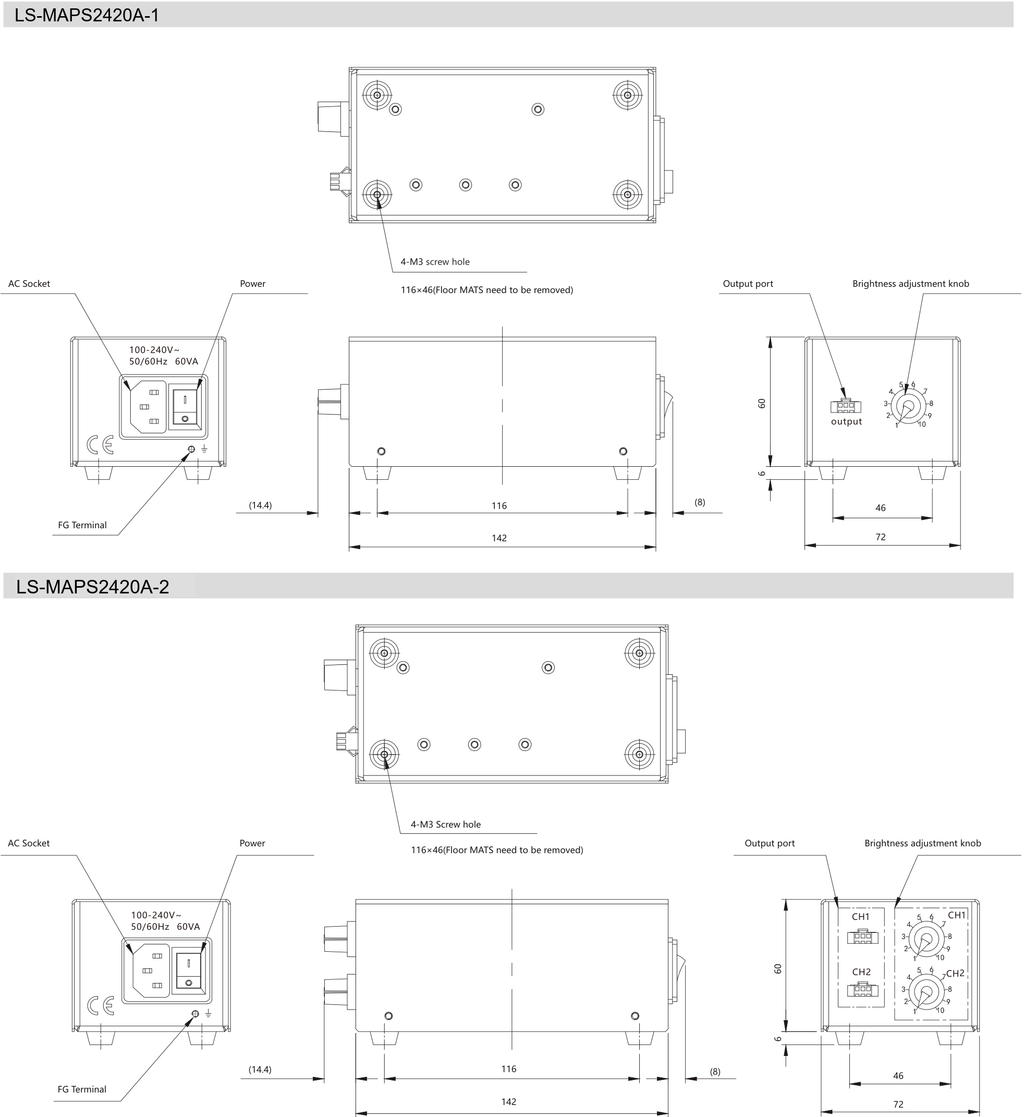

| Dimensions (mm) | 142 L (116 body + connectors) x 72 W x 60 H plus 6 mm feet |
| Mounting | 4-M3 screw holes, 116 x 46 (feet must be removed) |
| Channels | 2 |
| Total output (W) | 20 |
