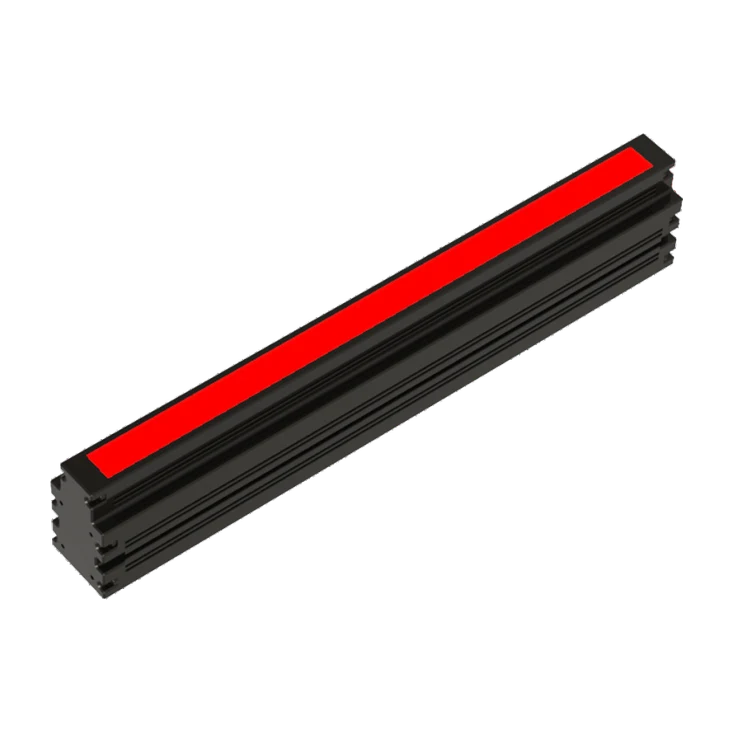

100 mm Dual-Angle Line Scan Light (LS-LNJ-100)
Red
$329.00
Skip to product information
100 mm Dual-Angle Line Scan Light (LS-LNJ-100)
$329.00
100 mm Dual-Angle Line Scan Light. Line scan light with a special optical design that projects light obliquely in a crossed pattern. A unique heat dissipation structure extends its life, and it can be customized to the actual installation dimensions.
Features
- Adopting a special optical design, the light is obliquely projected in a crossed pattern.
- Unique heat dissipation structure to extend the life-span of the light.
- Can be customized according to the actual installation dimensions.
Applications
- Sheet stripe detection
- Film scratch detection
- Glass scratch detection
- Metal damage detection
Specifications
| Model | LS-LNJ-100 |
|---|---|
| Voltage (V) | 48 |
| Power R (W) | 39 |
| Power W/B/G (W) | 39 |
| Emitting area (mm) | 100x20 |

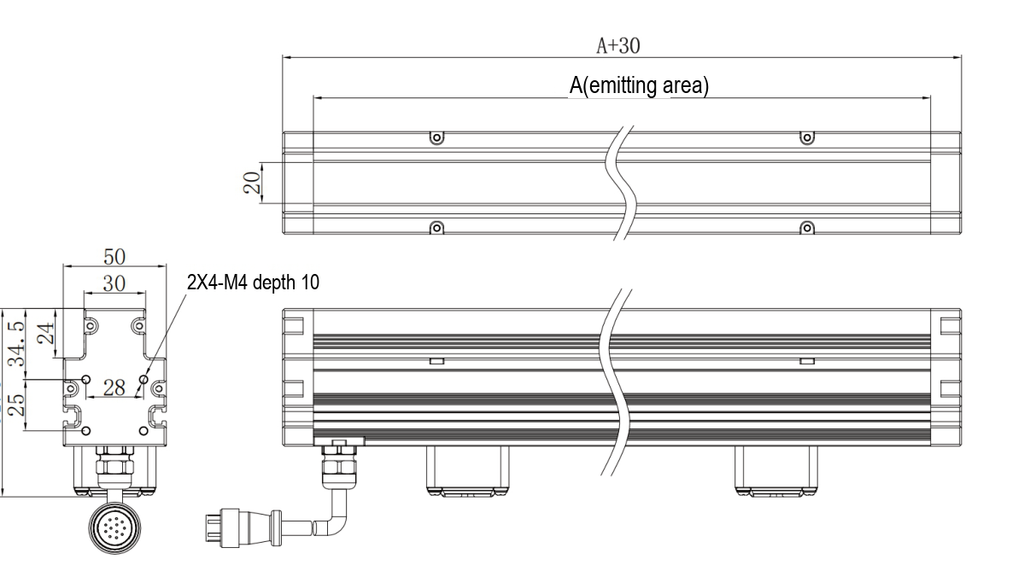

| Outer size LxWxH (mm) | 130x50x91.5 |
| Colours | Red, Green, Blue, White |
| Emitting width | 20 mm |
| Outer cross-section WxH | 50x91.5 mm |
| Mounting | 2X4-M4, 10 deep on end face |
| Shipping weight (estimated) | 0.65 kg |
