100 mm Mini Line Scan Light (LS-LNA-100)
$169.00

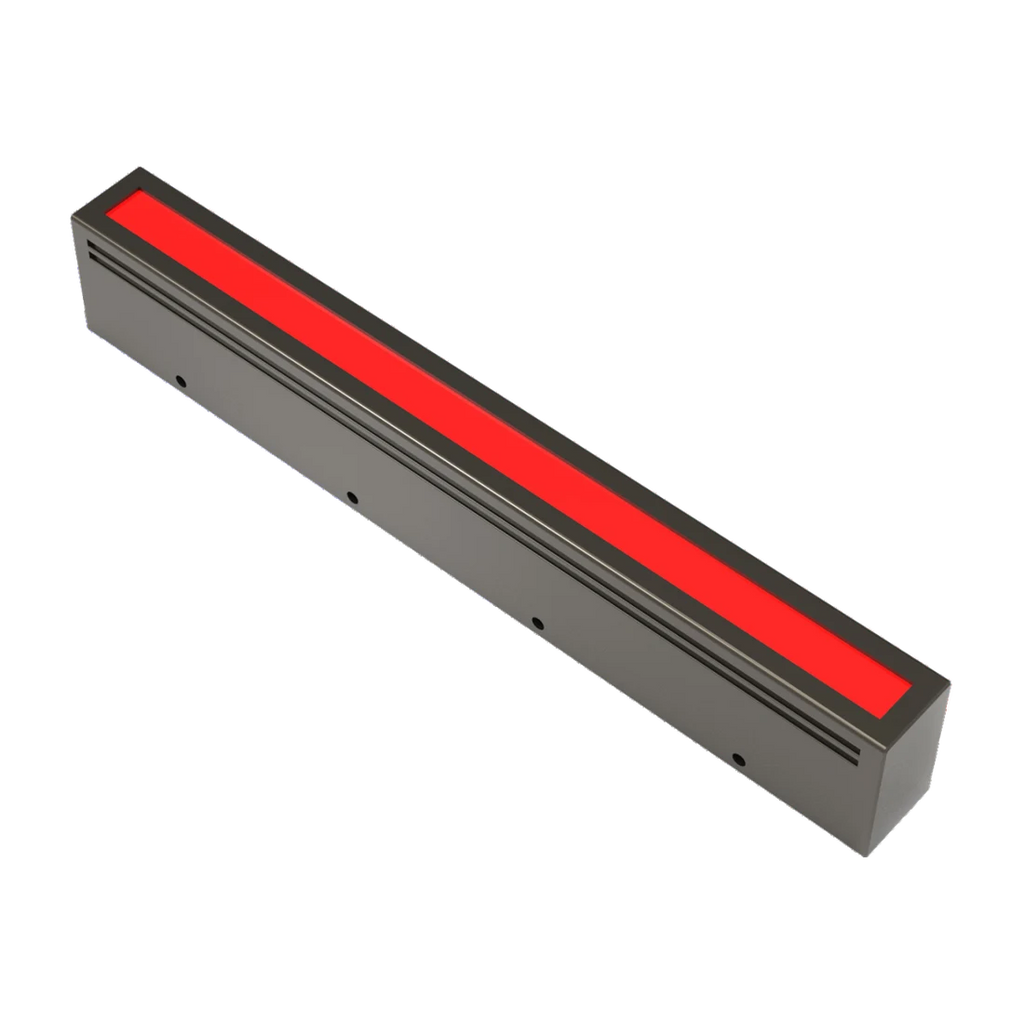

100 mm Mini Line Scan Light. Compact line scan light (printed as 'Mine Line Scan Light') whose high-power LEDs and condenser structure give high brightness. Its small size suits installations with limited room.
Features
- High-power LED and unique condenser structure provide high brightness.
- More compact in size, suitable for limited room.
Applications
- Metal surface defect detection
- Substrate component inspection
- Printed character recognition inspection
Specifications
| Model | LS-LNA-100 |
|---|---|
| Voltage (V) | 24 |
| Power R (W) | 5 |
| Power G/B/W (W) | 5 |
| Emitting area (mm) | 100x10 |
| Outer size LxWxH (mm) | 110x21x34 |
| Colours | Red, Green, Blue, White |

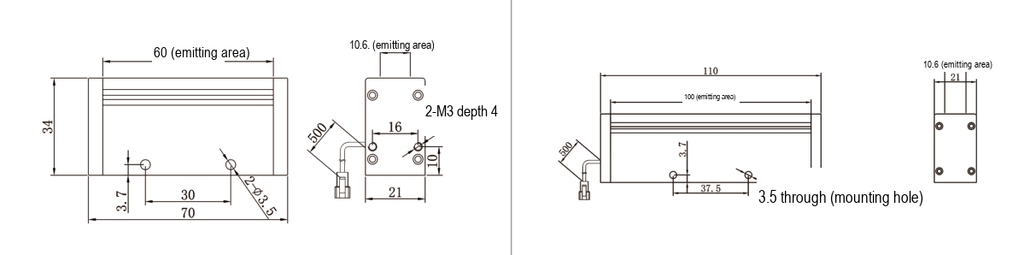

| Emitting width | 10 mm (emitting face 10.6 on drawings) |
| Outer cross-section WxH | 21x34 mm |
| Lead | 500 mm (drawings) |
| Mounting | Φ3.5 mounting holes on 37.5 mm pitch (100 mm pitch on LNA-1100), 3.7 from base |
| Shipping weight (estimated) | 0.30 kg |
