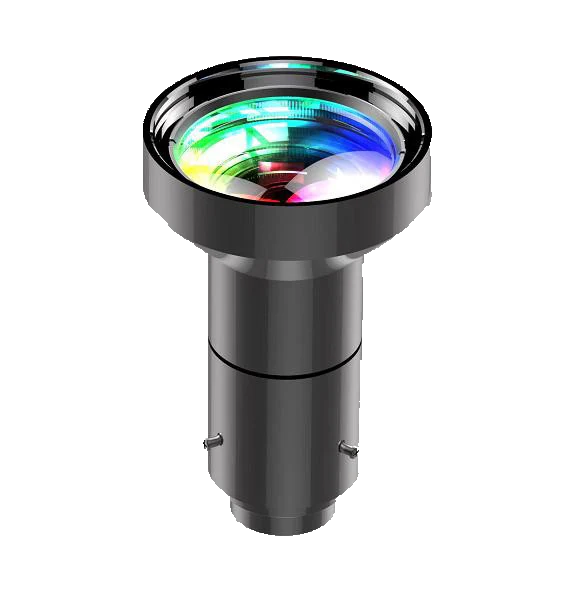

12mm, F1.6, 1", 900-1700nm, C-mount, SWIR lens (LS-KF1216-5MP-NIR)
$369.00
Skip to product information
12mm, F1.6, 1", 900-1700nm, C-mount, SWIR lens (LS-KF1216-5MP-NIR)
$369.00
12mm, F1.6, 1", 900-1700nm, C-mount, SWIR lens. Maximum sensor format 1'' Large-aperture design for high light throughput
Features
- Maximum sensor format 1''
- Large-aperture design for high light throughput
- Coating covers 900 nm–1700 nm with high infrared transmittance
Specifications
| Model | LS-KF1216-5MP-NIR |
|---|---|
| Focal length | 12mm |
| F-number | F1.6 |
| Image size | Φ16 mm(1”) |
| Distortion | 2.4% |
| Minimum object distance | 0.5m |
| Field of view | D(15.86 mm):70°; H(12.45 mm):57°; V(9.83 mm):44° |
| Iris control | Fixed |
| Focus control | Manual |
| Filter thread | M52×0.75 |
| Connector type | C-Mount |
| Flange back length | 17.526mm |
| Dimension | Φ55 × 79 mm |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.31 kg |
