300 x 220 mm Four-sided shadowless light (HSP) (LS-HSP326246)
Red
$1,009.00
Skip to product information
300 x 220 mm Four-sided shadowless light (HSP) (LS-HSP326246)
$1,009.00
Uses a unique illumination structure: LED light is diffused evenly by special optical material while a flexible circuit board fixes the illumination angle at 90 degrees; after refraction it lights the target area efficiently and evenly. Suited to large objects.
Features
- Unique structure, efficient and even illumination
- Suitable for large-area objects
Applications
- Phone edge inspection
- Character recognition
- Colour inspection
- Phone housing screw presence inspection
Specifications
| Model | LS-HSP326246 |
|---|---|
| Cable length (mm) | 500 |
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
| Size (mm) | L 326 x W 246 |
| Power, green/blue/white (W) | 65 |
| Power, red (W) | 40 |
| Recommended controller | HMDPC2480 |

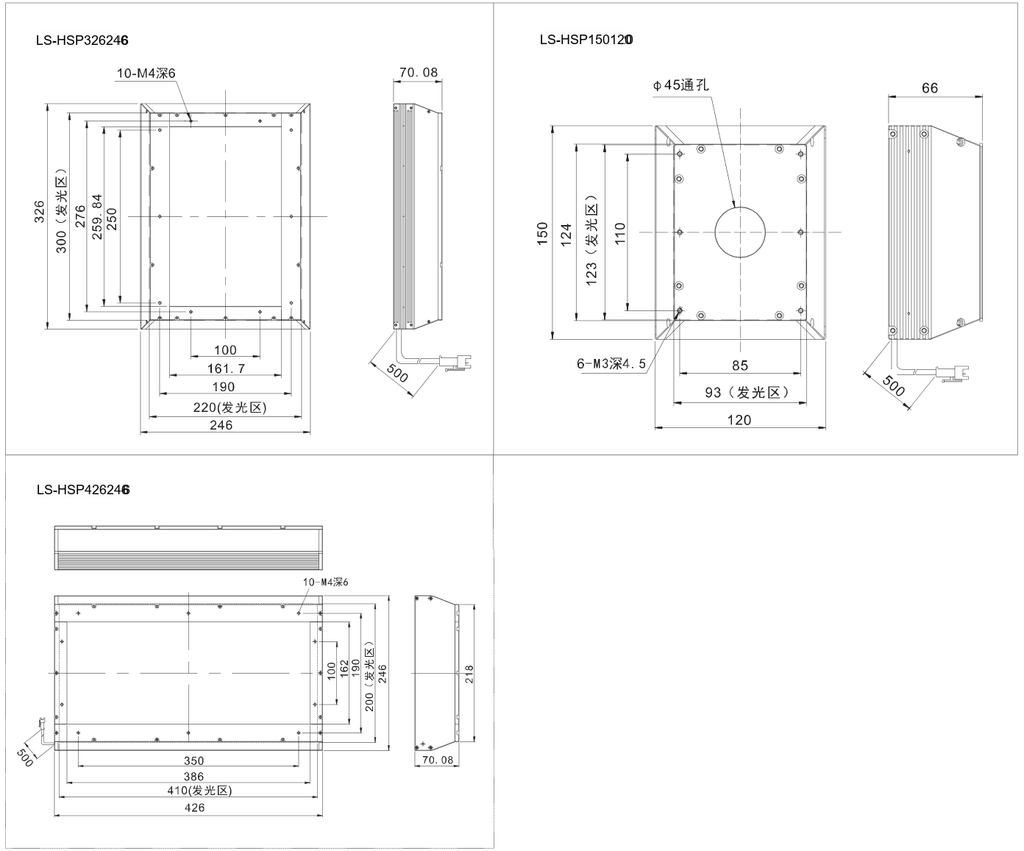

| Emitting area (mm, drawing) | 300 x 220 |
