MAPC analog power supply controller, 1 ch (LS-HMAPC2420-1T)
$89.00
MAPC series analog controllers provide brightness-control power for 24 V LED lights. Brightness is set precisely with stepless knobs on the front panel; small, flexible and able to stay lit for long periods.
Features
- Stepless knob for precise brightness adjustment
- Small size, light weight, flexible
- Two channels controlled independently for precise control
Specifications
| Model | LS-HMAPC2420-1T |
|---|---|
| Input voltage | AC100-240V 50/60Hz |
| Output voltage | 0-24 V |
| Control | Stepless knob |
| Trigger input | No |

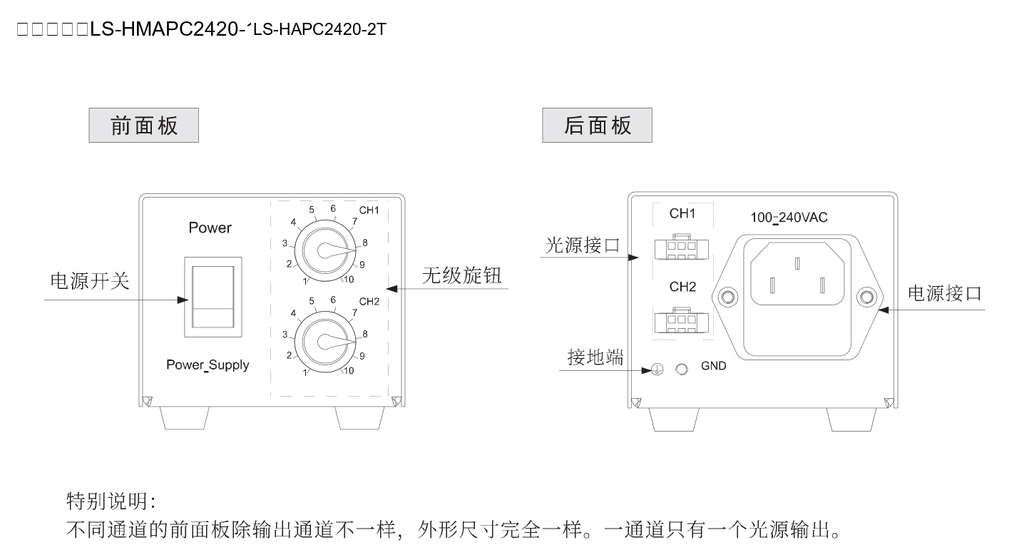

| Front panel | Power switch, stepless knobs |
| Rear panel | Light output ports, power input, ground terminal |
| Panel note | Front panels for different channel counts differ only in the output channels; outer dimensions are otherwise the same. One channel drives one light output. |
| Channel / output | C1 O1 (1 channel, 1 output) |
| Single channel current | 0.7A |
| Total output current | 0.7A |
| Control (perform) | Knob |
| Channels | 1 |
