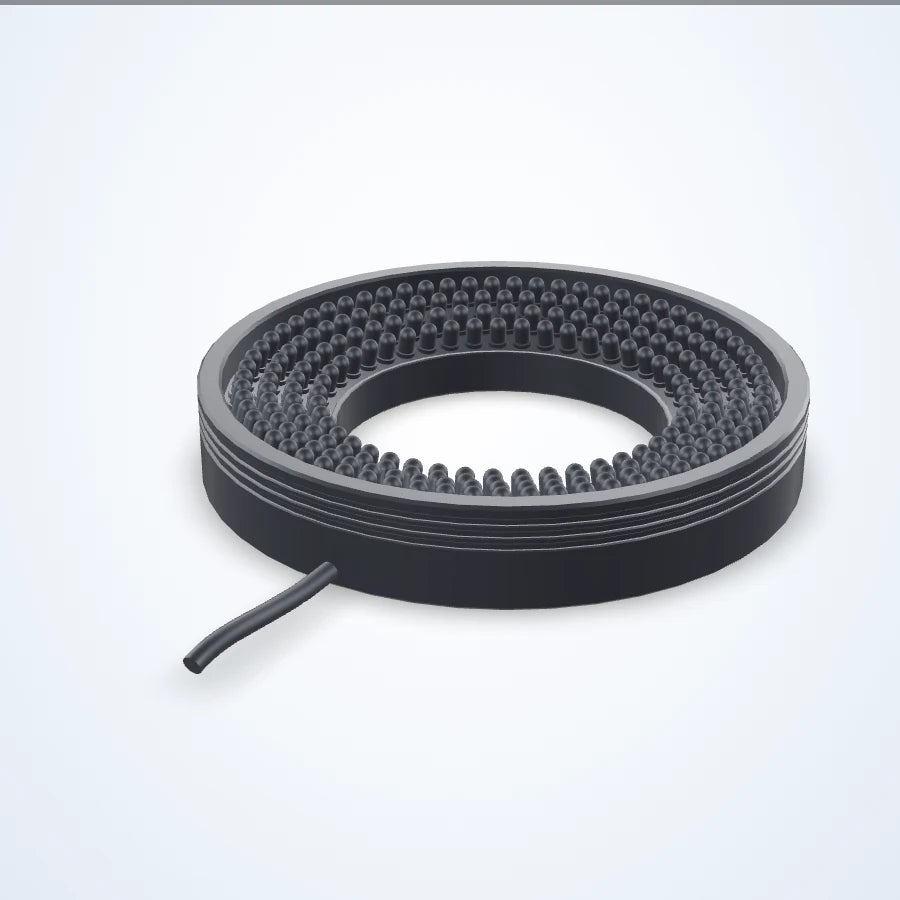

100 mm OD LED Ring Light (LS-HLR-100-75)
$159.00
100 mm OD LED Ring Light. Ring light series with a high-density LED array for even brightness. Angles are customizable to requirements, wavelength/colour temperature and colour combinations are optional, and an optional diffuser gives uniform light.
Features
- Angles customizable to requirements.
- Wavelength and color temperature are optional, and different color combinations are also available.
- Compact design, easy installation.
- High-density LED array for even brightness.
- Optional diffuser for uniform light.
Applications
- Size/recognition
- Microscope illumination
- LCD calibration
- 2D code reading
Specifications
| Model | LS-HLR-100-75 |
|---|---|
| LED rows | 4 |
| Angle (°) | 75 |
| Voltage (V) | 24 |
| Power R (W) | 9 |
| Power G/B/W (W) | 9.5 |

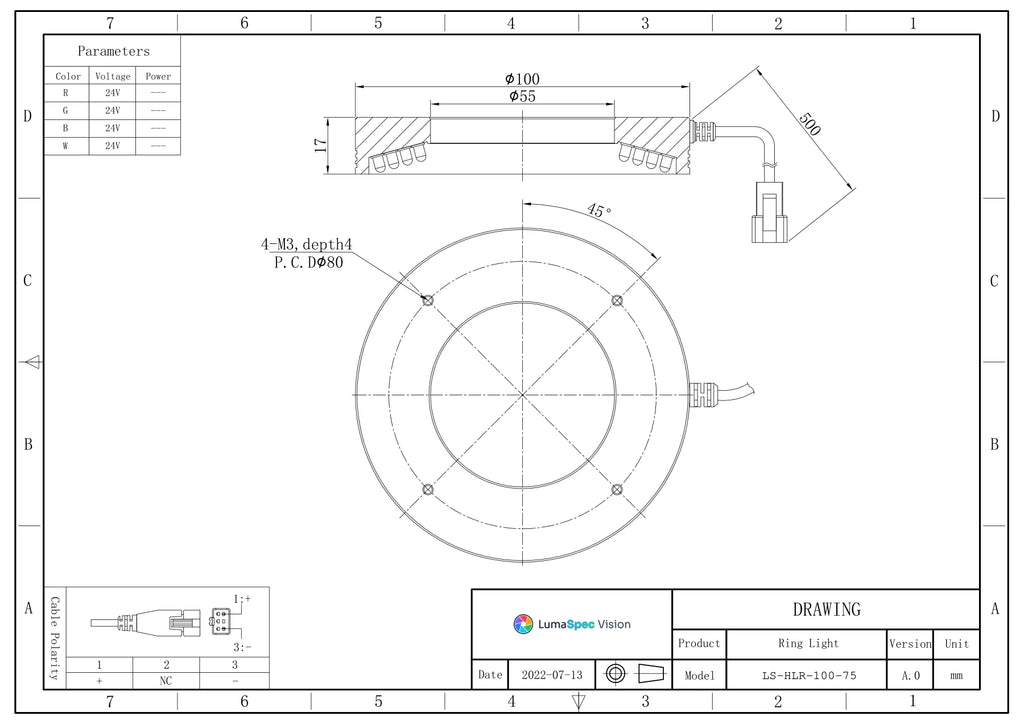

| OD x ID x H (mm) | 100x55x17 |
| Colours | Red, Green, Blue, White |
| Model code | LS-HLR-<outer diameter>-<angle>-<color>, e.g. LS-HLR-32-70-W |
| Mounting (all drawn models) | 4-M3 tapped holes, depth 4, on a P.C.D. (value per model) |
| Illumination chart | HLR-50-75: illuminance (lx) vs working distance (mm); uniformity maps at LWD 15/30/45/60 mm |
| Shipping weight (estimated) | 0.30 kg |
