Ordinary digital controller, 2 ch, 65 W (LS-DV65-N01C-24012-2)
$219.00
Skip to product information
Ordinary digital controller, 2 ch, 65 W (LS-DV65-N01C-24012-2)
$219.00
Controller section 'Ordinary digital controller' of the light controller selection manual (cards P31-P36).
Features
- Support RS232 communication
- Low trigger response time
- Support external trigger mode
- Brightness and mode can be set manually
- Low trigger response time (≤10us)
Specifications
| Model | LS-DV65-N01C-24012-2 |
|---|---|
| Maximum input voltage | AC220V |
| Maximum output voltage | 24V |
| Overheat protection | NO |
| Working mode | 0: Normally extinguished; 1: Bright |
| Short-circuit protection | NO |
| Brightness level | 255 levels |
| Communication baud rate | 9600-115200bps optional |
| Trigger mode | Level trigger |
| Operating temperature | -5~50°C |
| Driving mode | PWM |

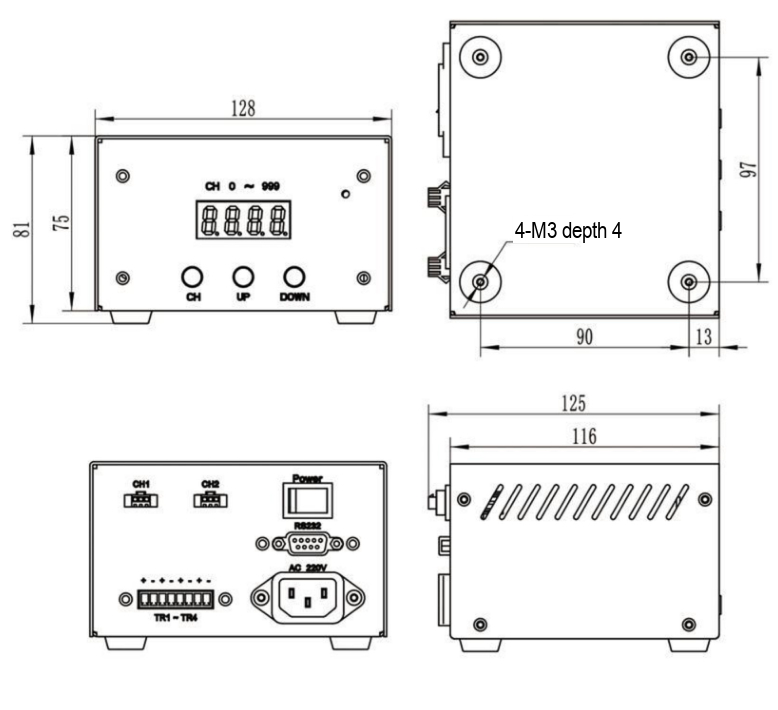

| Dimension | 128x125x81mm |
| Built-in power supply power | 65W |
| Number of channels | 2 |
| Connected light source type | 10mA~1.2A 24V power supply |
| Maximum output current of single channel | 1.2A |
| Built-in power supply | 65W |
| Microsecond strobe time | 1~999us |
| Luminous mode | Constant Brightness |
| Output voltage | 24V |
| Max current per channel | 1.2A |
| Communication | RS232 |
| Trigger | 5~24V trigger |
| Feature 1 | Supports external triggering mode |
| Manual page code | P31 |
| Total output (W) | 65 |
| Control | digital (buttons, 4-digit display) / RS232 |
