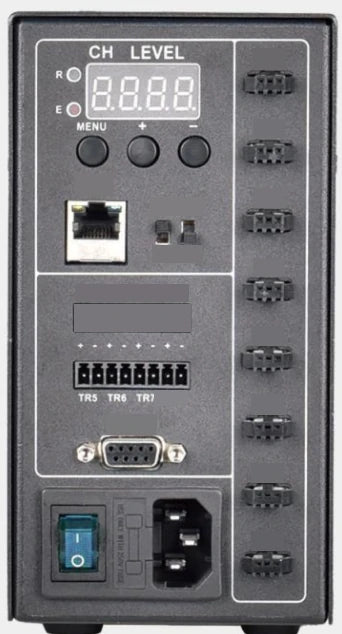

Ethernet digital controller, 8 ch, 120 W (LS-DV120-N02CE-24030-8)
$429.00
Support RS232 communication. Support 100M Ethernet communication. Built-in 24V power supply.
Features
- Support RS232 communication
- Support 100M Ethernet communication
- Built-in 24V power supply
- Low trigger response time
- Support external trigger mode
- Support millisecond strobe and microsecond strobe
- Brightness and mode can be set manually
- 5~24V trigger, adaptable to high and low level trigger modes
- Convenient installation, screw mounting or C45 card rail mounting
Specifications
| Model | LS-DV120-N02CE-24030-8 |
|---|---|
| Maximum output current of single channel | 3A |
| Maximum input voltage | AC220V |
| Maximum output voltage | 24V |
| Overheat protection | 65W none, all others have |
| Working mode | 0: Normally extinguished; 1: Bright; 2: Millisecond strobe; 3: Microsecond strobe |
| Short-circuit protection | no |
| Brightness level | 255 levels |
| Millisecond strobe time | 1~999ms |
| Microsecond strobe time | 1~999us |
| Communication | RS232; 100Gb Ethernet |
| Trigger mode | Edge + level trigger |
| Operating temperature | -5~50°C |
| Luminous mode | Normal light, normal extinction, strobe |
| Driving mode | PWM |

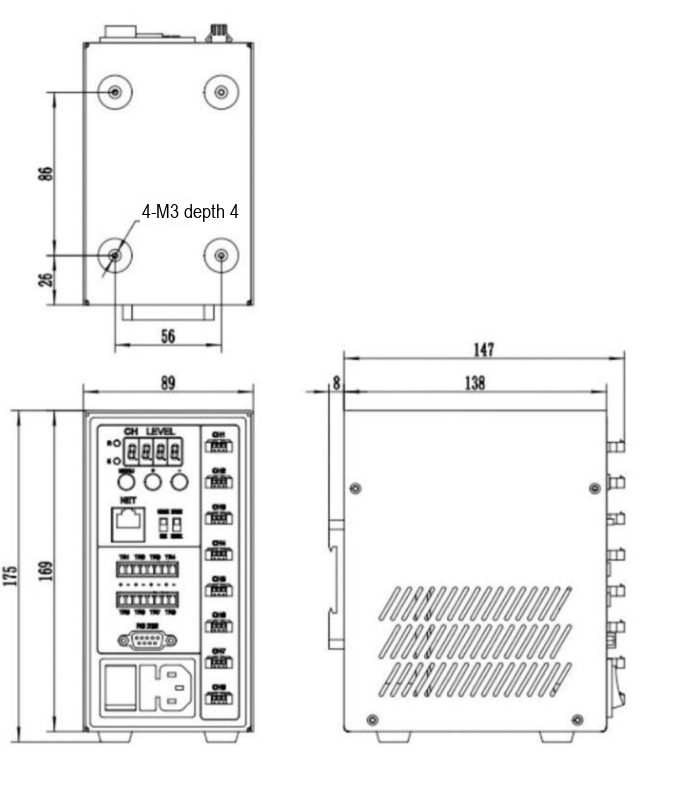

| Dimension | 89×155×175mm |
| Built-in power supply power | 120W |
| Number of channels | 8 |
| Connected light source type | 10mA~3A 24V power supply |
| Total output (W) | 120 |
| Control | digital (buttons, 4-digit display) / RS232 / Ethernet |
