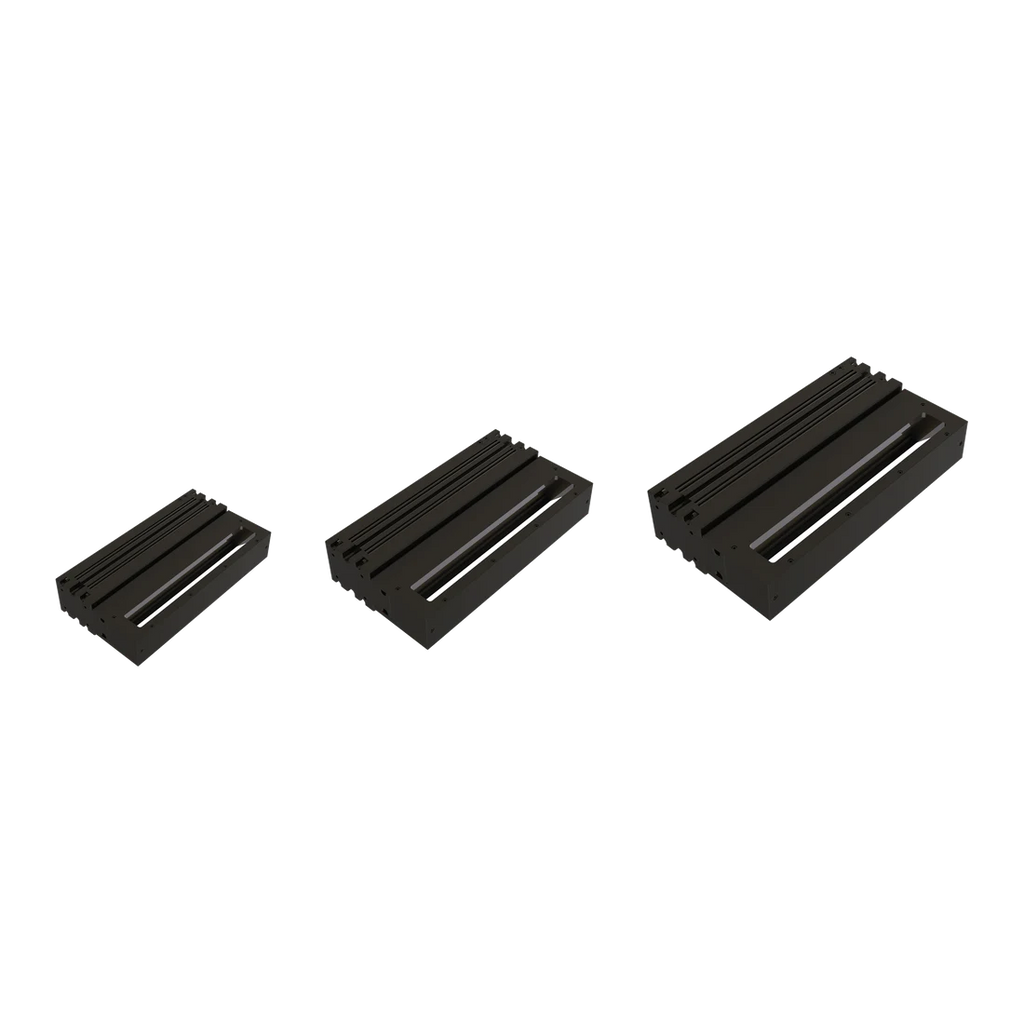

100 mm Coaxial Line Scan Light (LS-COX-100)
$389.00
100 mm Coaxial Line Scan Light. High-speed, large-format, high-brightness coaxial line illumination with a high-efficiency optical structure. Highly directional light reduces divergence and suits both glossy and matte workpieces.
Features
- High-speed, large-format, high-brightness coaxial illumination.
- High-efficiency optical structure.
- Compatible with surface inspection of both glossy and matte workpiece.
- Highly directional illumination, reduces divergence and enhances inspection effectiveness.
Applications
- Substrate component inspection
- Separator appearance check
- Touch panel damage/dent detection
Specifications
| Model | LS-COX-100 |
|---|---|
| Voltage (V) | 48 |
| Power R (W) | 38 |
| Power G/B/W (W) | 38 |
| Emitting area (mm) | 100x20 |

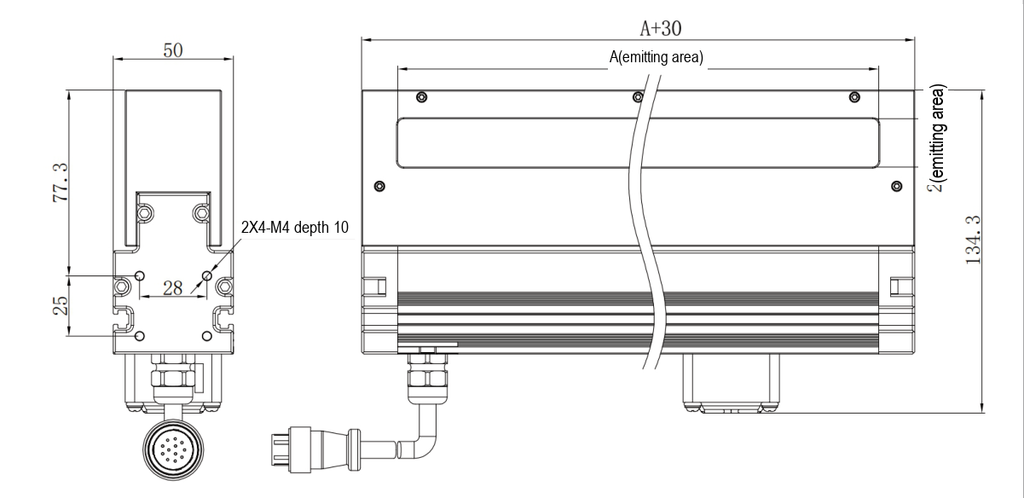

| Outer size LxWxH (mm) | 130x50x134.3 |
| Colours | Red, Green, Blue, White |
| Emitting width | 20 mm |
| Outer width | 50 mm |
| Mounting | 2X4-M4, 10 deep on end face (holes 28 apart) |
| Shipping weight (estimated) | 0.80 kg |
