Object-Side Telecentric Lens, 0.3x, 650 mm WD, 1.1" (LS-KY-03-650)
$1,339.00
Object-Side Telecentric Lens, 0.3x, 650 mm WD, 1.1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 1.1"
Specifications
| Model | LS-KY-03-650 |
|---|---|
| Magnification | 0.3 |
| Working distance | 650 mm |
| Image size | 1.1" |
| F-number | F10.5 |
| Depth of field | 10.5 mm |
| Distortion | ≤ 0.002% |
| Object-side resolution | 26.5 μm |
| Object-side telecentricity | Non-telecentric |
| Connector type | C-Mount |
| Coaxial light | Not supported |

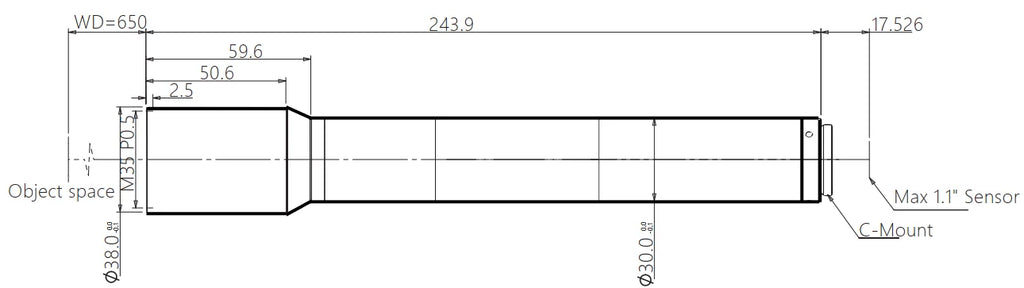

| Dimension | 243.9 mm × Φ38 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
