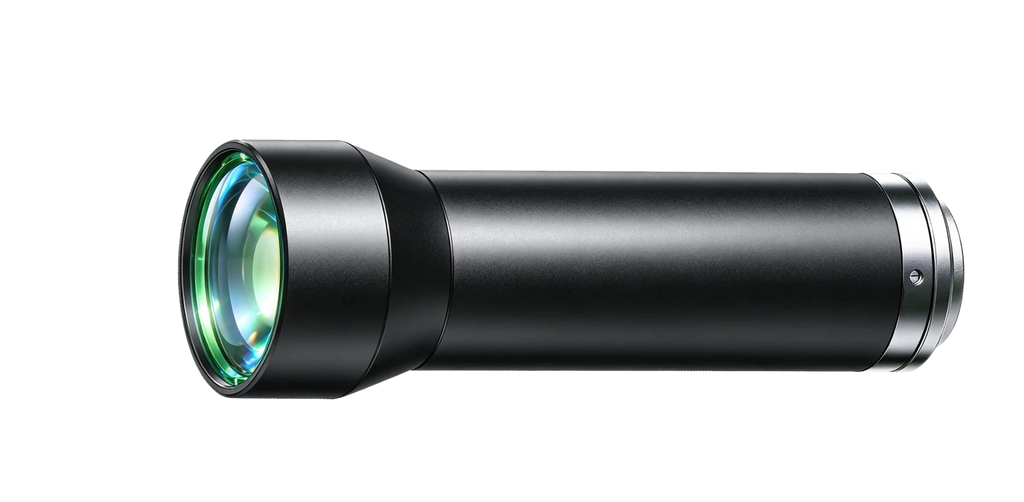

Object-Side Telecentric Lens, 0.93x, 120 mm WD, 1.1" (LS-KT-093-120-V3)
$1,279.00
Pomiń, aby przejść do informacji o produkcie
Object-Side Telecentric Lens, 0.93x, 120 mm WD, 1.1" (LS-KT-093-120-V3)
$1,279.00
Object-Side Telecentric Lens, 0.93x, 120 mm WD, 1.1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 1.1"
Specifications
| Model | LS-KT-093-120-V3 |
|---|---|
| Magnification | 0.93 |
| Working distance | 120 mm |
| Image size | 1.1" |
| F-number | F11 |
| Depth of field | 1 mm |
| Distortion | ≤ 0.1% |
| Object-side resolution | 8 μm |
| Object-side telecentricity | ≤ 0.01° |
| Connector type | C-Mount |
| Coaxial light | Not supported |

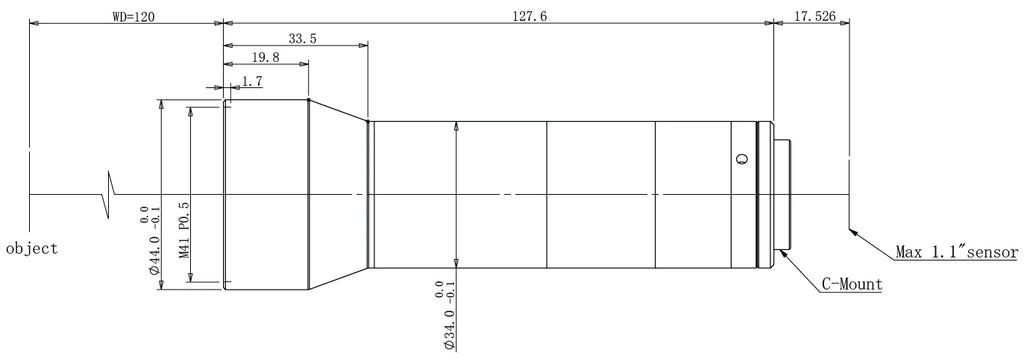

| Dimension | 127.6 mm × Φ44 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
