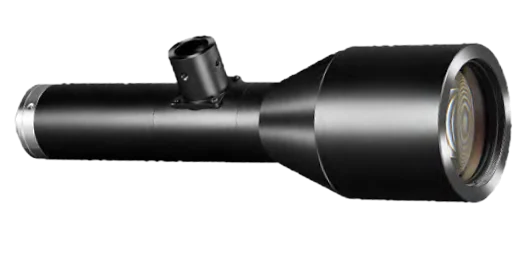

Object-Side Telecentric Lens, 0.367x, 220 mm WD, 1.1", coaxial light port (LS-KT-0367-220C)
$1,299.00
Pomiń, aby przejść do informacji o produkcie
Object-Side Telecentric Lens, 0.367x, 220 mm WD, 1.1", coaxial light port (LS-KT-0367-220C)
$1,299.00
Object-Side Telecentric Lens, 0.367x, 220 mm WD, 1.1", coaxial light port. Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 1.1"
Specifications
| Model | LS-KT-0367-220C |
|---|---|
| Magnification | 0.367 |
| Working distance | 220 mm |
| Image size | 1.1" |
| F-number | F8 |
| Depth of field | ±2.4 mm @F8 |
| Distortion | ≤ 0.06% |
| Object-side resolution | 11.9 μm |
| Object-side telecentricity | ≤ 0.06° |
| Connector type | C-Mount |
| Coaxial light | Supported |

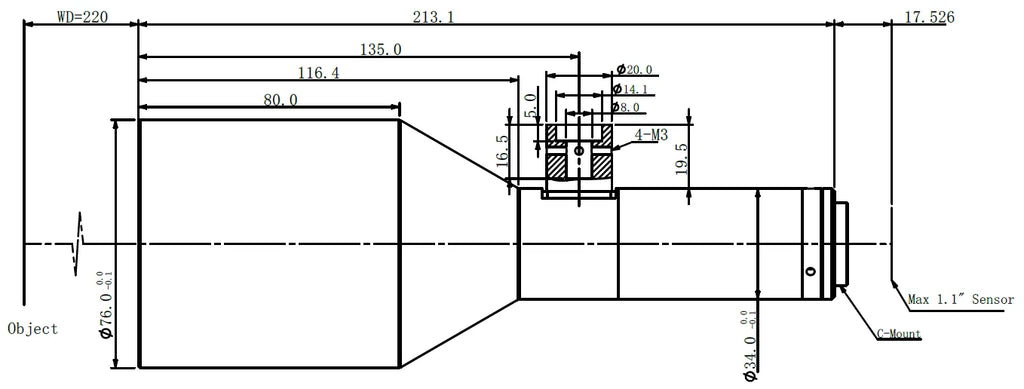

| Dimension | 213.1 mm × Φ76 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
