40 x 40 mm IR light (LS-HCOL40K-IR850)
$109.00
Infrared light sources providing near-infrared 850 nm and 940 nm illumination; shape and lighting mode can be customised. Infrared light penetrates more strongly than ordinary light and works well for inspecting translucent samples.
Features
- Shape and lighting mode can be freely customised
- Near-infrared 850 nm and 940 nm illumination
Applications
- Medical (vein recognition, eyeball positioning)
- Packaging (see-through plastic packaging)
- Clothing, textiles
- Imaging case: product liquid level inspection
Specifications
| Model | LS-HCOL40K-IR850 |
|---|---|
| Peak wavelength | IR 850-940 nm |
| Operating environment | Ambient about 22 °C; operating temperature within 25 °C |
| Expected lifetime | Can be lit continuously for 30000 hours with light decay of 45% (about 8-10% decay after one year of normal lighting) |
| Support | All products come with one year of standard free technical support and can be customised to the object features, working distance, lighting angle and field of view |
| Suggested controller | LS-HAPC2424P-1T, -2T / LS-HDPC2465D-2T, -4T, -6T, -8T |
| Emitting size (mm) | Emitting area 40 x 40 |
| Power (W) | 3 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-HAPC2424P-1T, LS-HDPC2465D-2T |

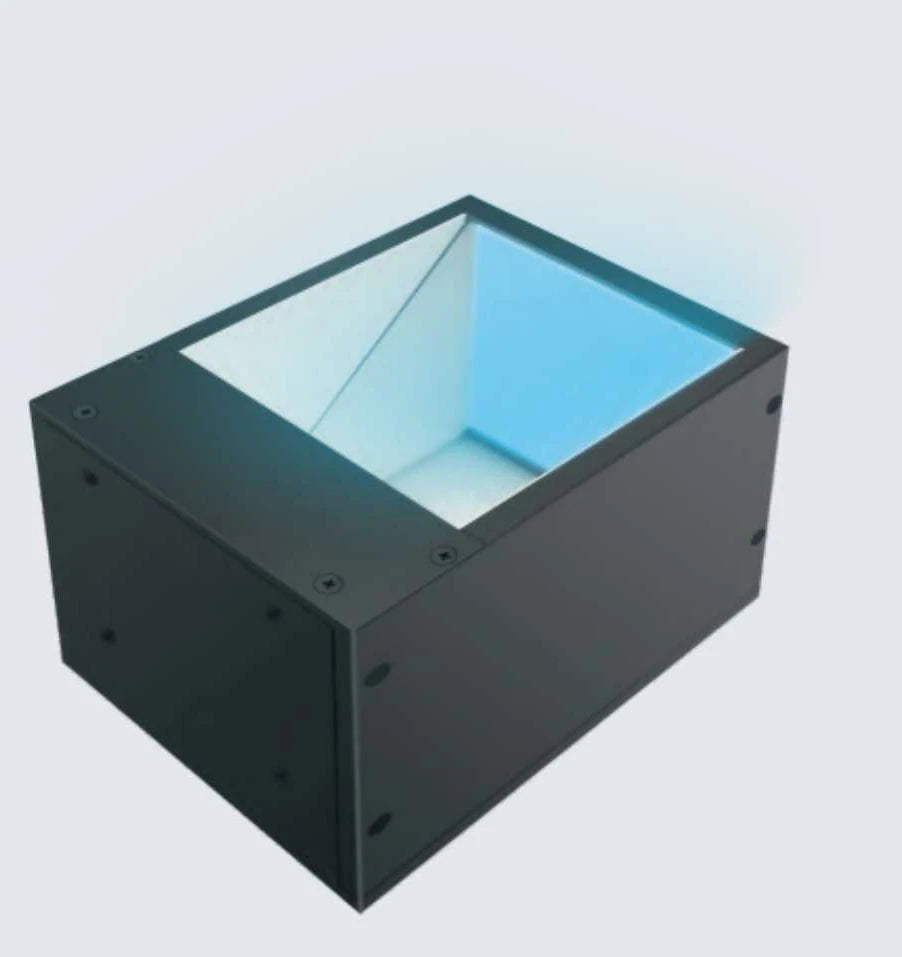

Photo shows the visible-light version of this light; this model emits 850 nm infrared light - see the specifications.
