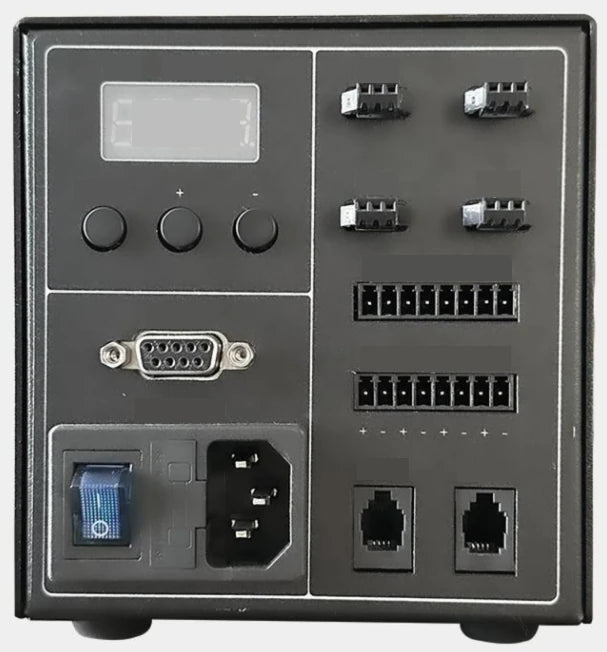

Constant current brightness enhancement strobe controller, 4 ch, 65 W (LS-DV150-SZ01CS-48200-4)
$459.00
Pomiń, aby przejść do informacji o produkcie
Constant current brightness enhancement strobe controller, 4 ch, 65 W (LS-DV150-SZ01CS-48200-4)
$459.00
Strobe controller with built-in 48V switching power supply, high current output, adjustable brightness enhancement factor, temperature-controlled heat dissipation and RS232/RS485 communication.
Features
- Flexible selection of communication
- Built-in 48V switching power supply
- High current power output
- Temperature control and heat dissipation function
- Trigger signal with low latency
- Supports external/internal triggering modes
- Supports synchronous signal output
- Fine output pulse width
- Stable current drive
- Adjustable brightness enhancement factor
- Flexible output configuration
Specifications
| Model | LS-DV150-SZ01CS-48200-4 |
|---|---|
| Baud rate | 9600-115200bps optional |
| Built-in power supply power | 65W |
| Connected light source type | Light source with a current of 10mA~700mA greater than 24V |
| Control | Digital (4-digit display, buttons), RS232, RS485 serial port |

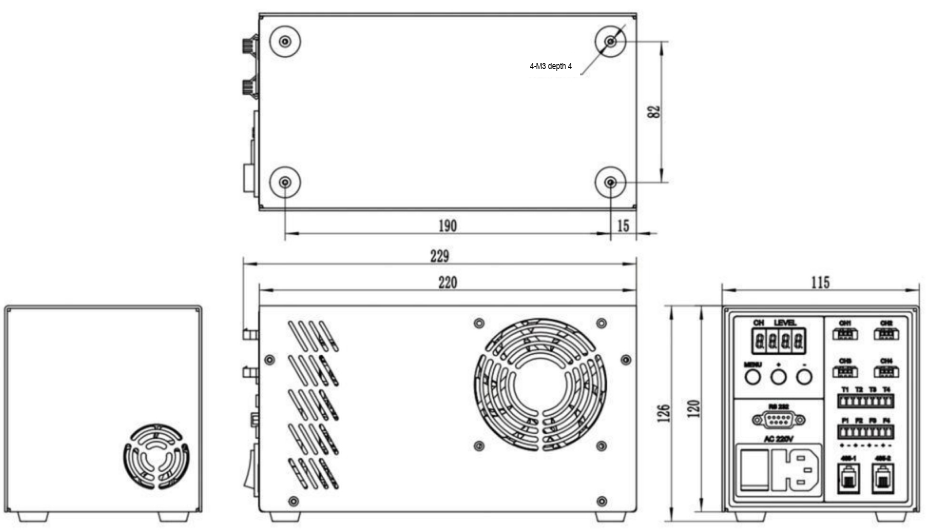

| Dimensions (mm) | 115 x 229 x 126 |
| Internal trigger cycle | 10~999ms |
| Max input voltage | AC220V |
| Max output current per channel | Instantaneous 20A |
| Max output voltage | 48V |
| Operating modes | Always on / internally triggered / externally triggered |
| Operating temperature | -5~50°C |
| Overheat protection | Yes |
| Response speed | 500ns |
| Strobe delay time | 0~999us |
| Strobe pulse width | 10~999us |
| Trigger | External/internal trigger, edge; synchronous signal output |
| Trigger method | Edge |
| Number of channels | 4 |
| Total output (W) | 65 |
